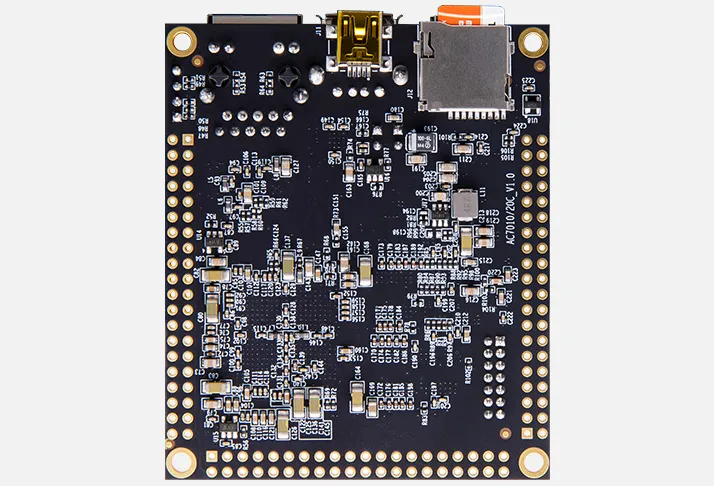

AC7010C SoM with AMD Zynq™ 7000 SoC XC7Z010

The AC7010C SoC module combines AMD Zynq™ 7000 SoC-series device with fast DDR3 SDRAM, QSPI Flash, suitable for Industrial, Medical, Automotive, Video and Image Processing, Control & Instrumentation and Communication, etc.

153.09 € 153.09 €

Origin of Goods: China
HS Code: 8471800000

Description and Technical Data:

1) Overview/Key Features

The AC7010C is a Zynq-7000 system-on-module combining an XC7Z010 SoC with DDR3 SDRAM and QSPI flash. It integrates a dual-core ARM Cortex-A9 processor system with programmable logic, making it suitable for embedded processing and control applications.

Key features include:

  • XC7Z010-1CLG400C Zynq-7000 SoC
  • Dual-core ARM Cortex-A9 processor system
  • 512 MB DDR3 SDRAM
  • 32 MB QSPI flash
  • 94 FPGA I/Os and 8 PS MIOs
  • 5 V single-supply input
  • Operating temperature range: -40°C to +85°C
  • 75 × 64 mm form factor

NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.

2) Tech Specs

SpecificationDetail
SoCXC7Z010-1CLG400C
Processor systemDual-core ARM Cortex-A9, up to 667 MHz
Programmable logicArtix-7 FPGA fabric
DDR3 SDRAM512 MB, 32-bit
QSPI flash32 MB
PS MIOs8
FPGA I/Os94 HR I/Os
Supply voltage5 V
Operating temperature-40°C to +85°C
Dimensions75 × 64 mm

3) Tech Support/Dokuments

Web available technical information usually covers the module’s interfaces, dimensions, power supply, Zynq device, and hardware features. There are the following technical resources listed for the AC7010C: a user manual. Contact Mirifica Industrial for further detailed information for your project.

4) Related Product Suggestion

No add-on products could be confirmed on the product page.

5) Downloads/Links

No functioning download links could be confirmed.

6) What is in the package

The package contains.

• 1 x AC7010C SoC module
