Description and Technical Data:
1) Overview/Key Features

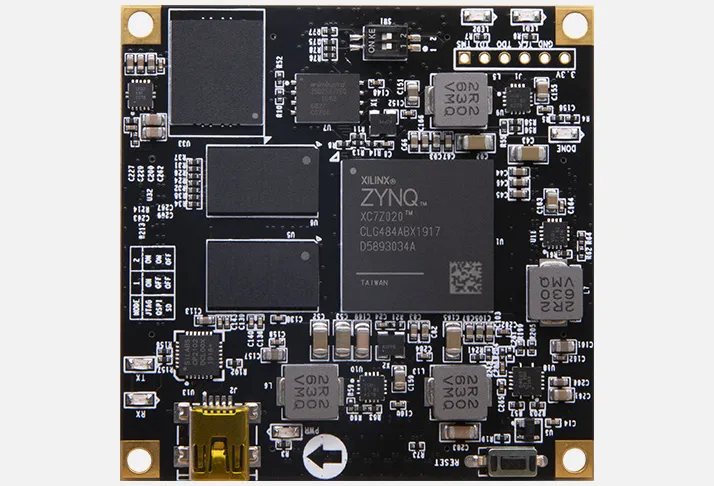

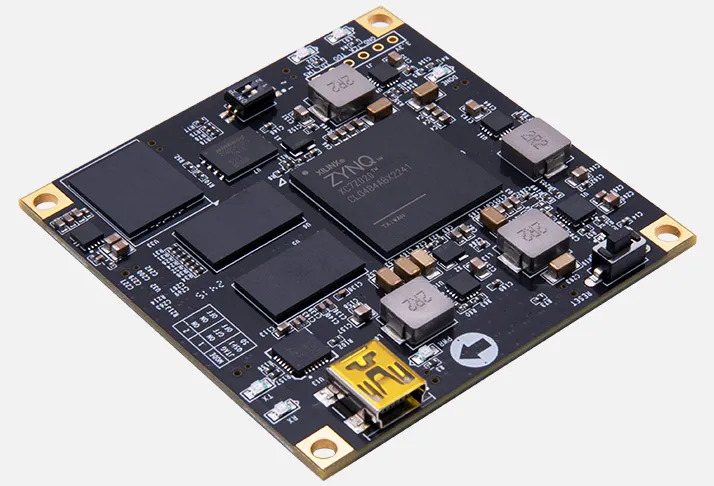

The AC7021B is a compact Zynq™-7000 System-on-Module based on the XC7Z020-2CLG484I industrial-grade device. It combines a dual-core ARM® Cortex®-A9 processing system with Artix®-7 FPGA programmable logic, DDR3 SDRAM, eMMC Flash, and QSPI Flash in a 60 mm × 60 mm module.
- Dual-core ARM Cortex-A9 processor operating up to 767 MHz
- XC7Z020-2CLG484I Zynq-7000 SoC with Artix-7 FPGA fabric
- 1 GB DDR3 SDRAM with a 32-bit bus
- 8 GB eMMC Flash storage
- 256 Mbit QSPI Flash
- 4 × 80-pin Panasonic industrial-grade board-to-board connectors
- Up to 44 PS MIOs and 198 FPGA I/Os
- Industrial operating temperature range from -40°C to +85°C
- 5 V single-supply operation
- Suitable for industrial control, communications, machine vision, video processing, medical equipment, automotive systems, and embedded computing
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | Zynq-7000 SoC System-on-Module |
| SoC device | XC7Z020-2CLG484I |
| Processor | Dual-core ARM Cortex-A9, up to 767 MHz |
| FPGA technology | Artix-7 programmable logic, 28 nm technology |
| Logic cells | Approximately 85,000 |
| Look-up tables | 53,200 |
| CLB flip-flops | 106,400 |
| DSP slices | 220 |
| Block RAM | 4.9 Mbit |
| DDR3 SDRAM | 1 GB total, 32-bit bus, 1066 Mbps data rate |
| eMMC Flash | 8 GB |
| QSPI Flash | 256 Mbit / 32 MB |
| PS MIO | Up to 44 |
| FPGA I/O | 198 HR I/Os |
| LVDS | Up to 48 differential pairs |
| XADC | 2 × 12-bit, 1 MSPS ADCs, supporting up to 17 differential inputs |
| Clock sources | 33.333 MHz PS clock and 50 MHz PL clock |
| JTAG | Reserved 6-pin JTAG interface for programming and debugging |
| USB UART | USB-based serial communication interface |
| Board indicators | 6 LEDs: power, DONE, TX, RX, and 2 user LEDs |
| Reset input | 1 reset key |
| Boot-mode selection | 2-position DIP switch for JTAG, QSPI, and SD-card boot modes |
| Expansion connectors | 4 × 80-pin Panasonic industrial-grade board-to-board connectors |
| Power input | +5 V DC through USB or a carrier board |
| Operating temperature | -40°C to +85°C |
| Module dimensions | 60 mm × 60 mm × 8.4 mm |
| PCB construction | 10-layer PCB |
| Connector height | 2.0 mm |
Technical specifications are based on the available product information and may be subject to change.
3) Tech Support/Dokuments
Web available technical information usually covers the AC7021B module architecture, processor and FPGA resources, memory configuration, connector arrangement, power requirements, operating temperature range, dimensions, and supported boot interfaces.
There are the following types of technical resources available for the AC7021B and its associated development platform:
- User documentation
- Hardware schematics
- 3D mechanical STEP files
- CE compliance documentation
- FPGA design examples and development files for the AX7021B development board
- Reference information for designing a compatible carrier board
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- AX7021B Zynq™-7000 development board for evaluation and application development
- AXK680337YG 80-pin high-speed board-to-board connectors for designing a compatible carrier board
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x AC7021B Zynq-7000 SoC System-on-Module
