AC7K325B FPGA SoM with AMD Kintex™ 7 XC7K325T
Alinx

AC7K325B FPGA SoM with AMD Kintex™ 7 XC7K325T

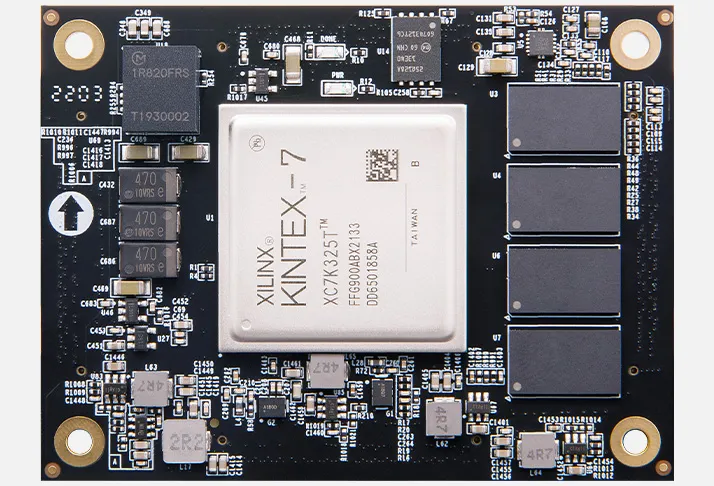

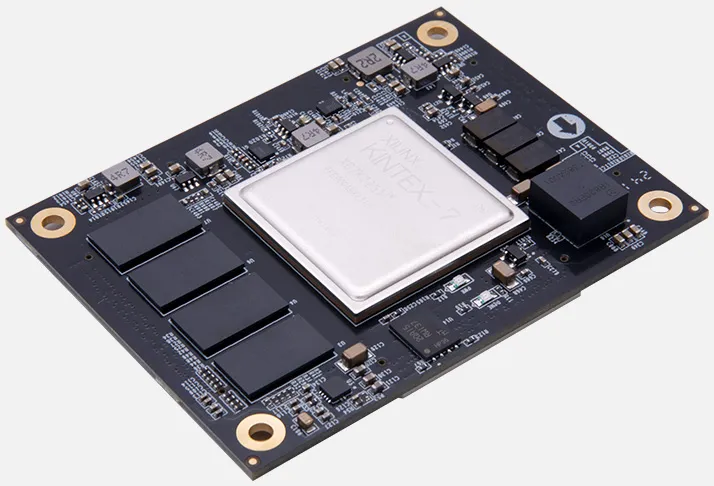

AC7K325B is a compact FPGA System-on-Module built around the AMD/Xilinx Kintex™ 7 XC7K325T-2FFG900I device.

547.64 € 547.64 €

Add to cart
Origin of Goods: China
HS Code: 8471800000


Description and Technical Data:

1) Overview/Key Features

The AC7K325B is a compact FPGA System-on-Module built around the AMD/Xilinx Kintex™ 7 XC7K325T-2FFG900I device. It combines high-speed FPGA processing, DDR3 memory, Quad-SPI Flash, PCIe connectivity, and multiple gigabit transceivers in an 80 × 60 mm pluggable module. The module is suitable for communication systems, image and video processing, data analysis, medical equipment, industrial control, and network information security applications.

  • Kintex™ 7 XC7K325T FPGA with 28 nm architecture
  • 2 GB 64-bit DDR3 SDRAM
  • 16 MB Quad-SPI Flash
  • 16 GTX gigabit transceivers with speeds up to 12.5 Gbps
  • 276 FPGA user I/Os
  • 1 × PCIe Gen2 interface
  • 4 × board-to-board connectors
  • 5 V single-supply operation
  • Operating temperature range from -40°C to +85°C
  • 80 × 60 mm module form factor

NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.

2) Tech Specs

SpecificationDetail
FPGA deviceXC7K325T-2FFG900I
FPGA familyKintex™ 7
FPGA process technology28 nm
DDR3 SDRAM2 GB, 64-bit
QSPI Flash16 MB
Gigabit transceivers16 × GTX, up to 12.5 Gbps
User I/Os276 FPGA I/Os
PCI Express1 × PCIe Gen2
Board-to-board connectors4 × Panasonic board-to-board connectors
Power input5 V single supply
Operating temperature-40°C to +85°C
Dimensions80 × 60 mm

3) Tech Support/Dokuments

Web available technical information usually covers the AC7K325B product description, applications, key features, FPGA device information, electrical architecture, and product selection data. There are the following technical resources listed for this product:

  • AC7K325B Schematic Diagram
  • AC7K325B User Manual
  • AC7K325B PCB Reference Design
  • AC7K325B 3D STEP model
  • Product selection matrix
  • Development demonstrations and tutorials

Contact Mirifica Industrial for further detailed information for your project.

4) Related Product Suggestion

  • AV7K325 FPGA Development Board and Kit with Kintex™ 7 XC7K325T
  • AV7K300 FPGA Development Board and Kit
  • AX7325B FPGA Development Board and Kit with Kintex™ 7 XC7K325T
  • ACKU060 FPGA System-on-Module with Kintex UltraScale™ XCKU060
  • ACKU5 FPGA System-on-Module with Kintex UltraScale+™ XCKU5P
  • ACAU15 FPGA System-on-Module with Artix™ UltraScale+ XCAU15P

5) Downloads/Links

6) What is in the package

The package contains.

  • 1 × AC7K325B Kintex™ 7 FPGA System-on-Module
