Description and Technical Data:
1) Overview/Key Features

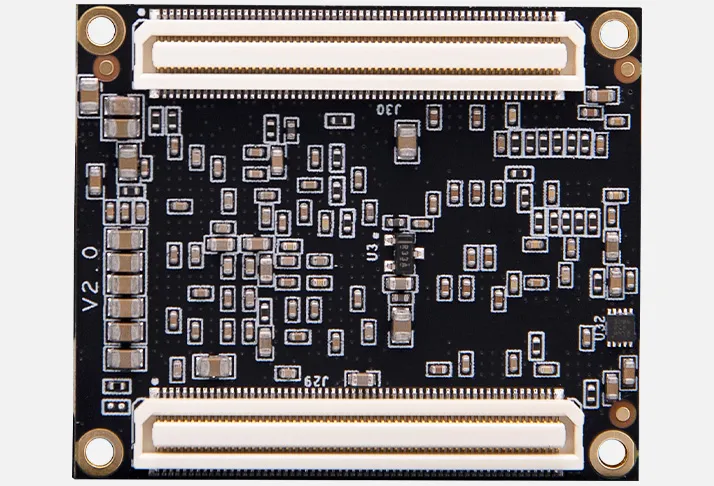

The AC7Z010 is a compact Zynq-7000 SoC system-on-module based on the XC7Z010-1CLG400I. It combines a dual-core ARM Cortex-A9 processor system with programmable logic, 512 MB of DDR3 memory, and 256 Mbit of QSPI flash. Two 120-pin connectors expose PS-side interfaces and PL I/O for connection to a carrier board. coderobin.com
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| SoC | XC7Z010-1CLG400I |
| Processor | Dual-core ARM Cortex-A9, 666 MHz |
| DDR3 SDRAM | 512 MB, 32-bit, 1066 Mbps |
| QSPI flash | 256 Mbit |
| Programmable logic | 28K logic cells; 17,600 LUTs; 80 DSP slices |
| PS MIO | 48 |
| PL I/O | 96 |
| Connectors | 2 × 120-pin board-to-board connectors |
| Power input | 5 V DC |
| Dimensions | 1.38 × 1.65 in |
| PCB | 12 layers |
3) Tech Support/Dokuments
Web available technical information usually covers the SoC, processor, memory, I/O, connectors, and power requirements. There are the following technical resources confirmed on the product page: none could be verified. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The AX7Z010 reference carrier board is suggested for use with the AC7Z010. coderobin.com
5) Downloads/Links
No functioning download links under the product’s Documentation section could be verified.
6) What is in the package
• 1 x product
