Description and Technical Data:
1) Overview/Key Features

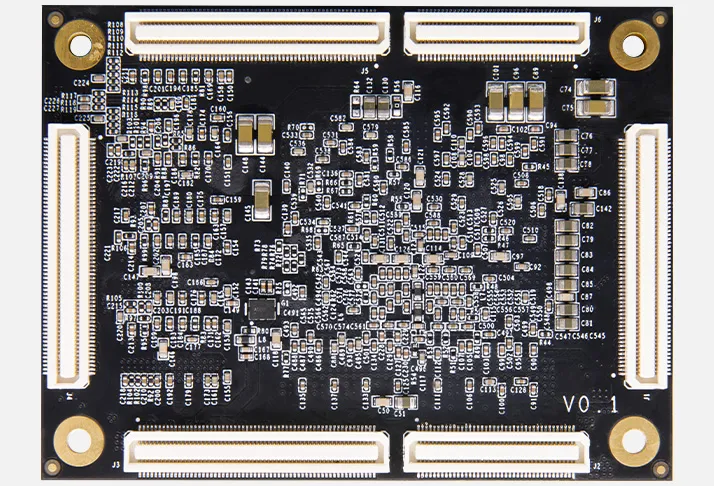

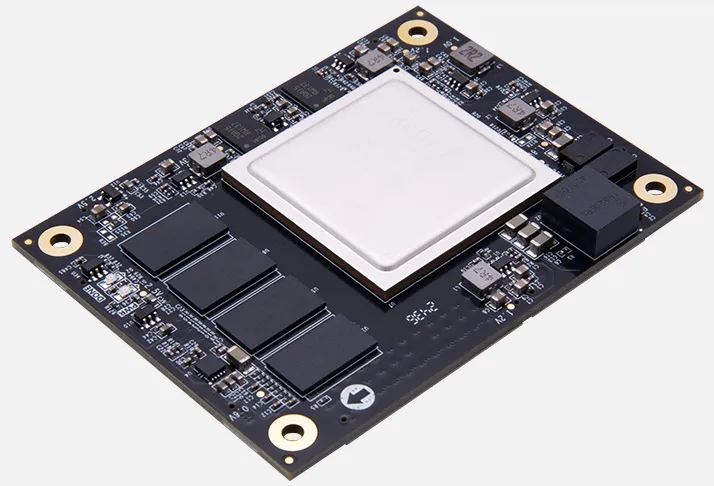

The ACKU060 is a high-performance FPGA System-on-Module based on the Kintex UltraScale XCKU060 FPGA. It combines high-speed DDR4 SDRAM, dual parallel Quad-SPI Flash, PCI Express connectivity, and multiple high-speed GTH transceivers in a compact 80 × 60 mm pluggable module. The module is suitable for high-speed embedded processing applications including data-center acceleration, storage acceleration, industrial and scientific systems, medical imaging, machine vision, wired communications, optical transport, wireless communications, radio, and baseband processing.
- Kintex UltraScale XCKU060 FPGA fabric using 20 nm technology
- Up to 1.5 million system logic units
- Up to 8.2 TeraMAC DSP compute performance
- 4 GB 64-bit DDR4 SDRAM
- 2 × 16 MB Quad-SPI Flash
- PCIe Gen3 ×8 interface
- 20 × GTH gigabit transceivers supporting speeds up to 16.3 Gbps
- 99 HR FPGA I/Os
- 255 HP FPGA I/Os
- 6 × Panasonic board-to-board connectors
- 12 V single-supply operation
- -40°C to +85°C operating temperature range
- 80 × 60 mm module form factor
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | XCKU060-2FFVA1156I |
| FPGA family | Kintex UltraScale |
| FPGA process technology | 20 nm |
| System logic capacity | Up to 1.5 million system logic units |
| DSP compute performance | Up to 8.2 TeraMAC |
| DDR4 SDRAM | 4 GB, 64-bit |
| Quad-SPI Flash | 2 × 16 MB |
| PCI Express | PCIe Gen3 ×8 |
| GTH transceivers | 20, supporting speeds up to 16.3 Gbps |
| HR FPGA I/Os | 99 |
| HP FPGA I/Os | 255 |
| Board-to-board connectors | 6 |
| Power input | 12 V single supply |
| Operating temperature | -40°C to +85°C |
| Dimensions | 80 × 60 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the ACKU060 FPGA device, DDR4 memory, Quad-SPI Flash, PCIe interface, GTH transceivers, FPGA I/O resources, power requirements, operating temperature, module dimensions, applications, and development options. There are the following technical resources listed under the product documentation area:
- ACKU060 V2.0 User Manual
- ACKU060 V3.0 User Manual
- Product selection matrix
- Development demonstrations and tutorials
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- AXKU062 FPGA Dev Board & Kit with Kintex UltraScale XCKU060
- ACKU040 FPGA System-on-Module with Kintex UltraScale XCKU040
- ACKU5 FPGA System-on-Module with Kintex UltraScale+ XCKU5P
- ACKU15 FPGA System-on-Module with Kintex UltraScale+ XCKU15P
- ACAU15 FPGA System-on-Module with Artix UltraScale+ XCAU15P
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x Kintex UltraScale SoM
