Description and Technical Data:
1) Overview/Key Features

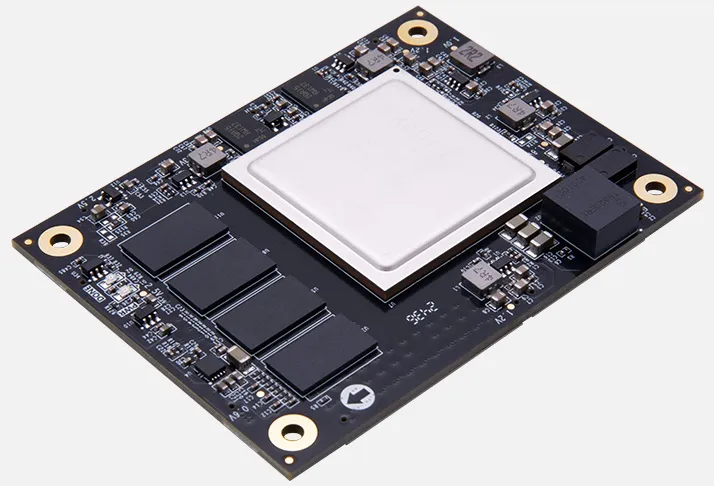

The ACKU095 is a high-performance FPGA System-on-Module based on the AMD/Xilinx Kintex UltraScale XCKU095-1FFVA1156I device. It combines FPGA logic, high-speed DDR4 SDRAM, dual parallel Quad-SPI Flash memory, PCIe connectivity, and multiple high-speed transceivers in a compact 80 × 60 mm pluggable module. The module is intended for demanding data-processing, communications, imaging, storage, and industrial applications.
Key features include:
- Kintex UltraScale FPGA fabric with up to 1.5 million system logic cells
- 8.2 TeraMAC DSP compute performance
- 20 GTH transceivers with data rates up to 16.3 Gbps
- PCIe Gen3 ×8 interface
- 4 GB, 64-bit DDR4 SDRAM
- 2 × 32 MB Quad-SPI Flash memory
- 52 HR user I/Os and 302 HP user I/Os
- 6 Panasonic board-to-board connectors
- 12 V single-supply operation
- Operating temperature range from -40°C to +85°C
- Compact 80 × 60 mm form factor
- Suitable for data-center acceleration, storage acceleration, medical imaging, machine vision, wired communications, optical transport, radio, and baseband applications
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | XCKU095-1FFVA1156I |
| FPGA family | Kintex UltraScale |
| FPGA process technology | 20 nm |
| System logic capacity | Up to 1.5 million system logic cells |
| DSP performance | Up to 8.2 TeraMAC |
| High-speed transceivers | 20 × GTH |
| Maximum transceiver rate | Up to 16.3 Gbps |
| PCI Express | PCIe Gen3 ×8 |
| DDR4 SDRAM | 4 GB, 64-bit |
| Quad-SPI Flash | 2 × 32 MB |
| HR user I/Os | 52 |
| HP user I/Os | 302 |
| Board-to-board connectors | 6 |
| Power input | 12 V single supply |
| Operating temperature | -40°C to +85°C |
| Module dimensions | 80 × 60 mm |
| Module type | Pluggable FPGA System-on-Module |
| Primary applications | Data processing, communications, storage acceleration, medical imaging, machine vision, and industrial systems |
3) Tech Support/Documents
Web available technical information usually covers the product overview, FPGA and memory configuration, high-speed transceiver resources, user-I/O interfaces, operating temperature range, electrical power requirements, applications, product selection information, and package contents.
There are the following technical documents and support resources:
- ACKU095 V1.0 User Manual
- Product overview and feature description
- Product selection matrix
- FPGA System-on-Module application information
- Information concerning compatible development boards, board-to-board connectors, and cooling solutions
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The following add-on and related products are identified for use with the ACKU095:
- AXKU095 Kintex UltraScale development board
- AXK680337YG 80-pin Panasonic board-to-board connector
- AXK6A2337YG 120-pin Panasonic board-to-board connector
- FAN8060 Heatsink Kit
The AXKU095 development board is a suitable option for evaluating the ACKU095 module and beginning application development. The board-to-board connectors can be used when designing a custom carrier board, while the FAN8060 Heatsink Kit provides a low-profile cooling solution for the module.
