Description and Technical Data:
1) Overview/Key Features

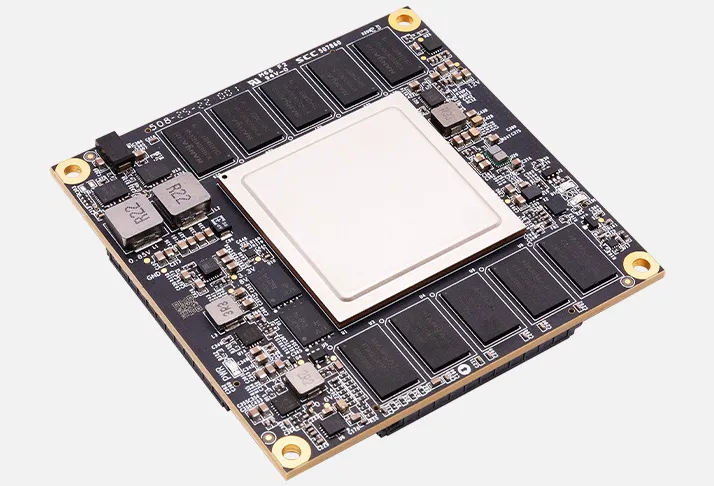

The ACKU15-D is a high-performance FPGA system-on-module based on the Kintex UltraScale+ XCKU15P device. The module combines programmable logic, high-speed DDR4 SDRAM, parallel QSPI Flash, high-speed transceivers, and PCIe connectivity in a compact 80 x 80 mm form factor. It is suitable for data-center network acceleration, storage acceleration, PON access, optical transport, industrial and medical imaging, machine vision, wired communications, radio, and baseband applications.
- Kintex UltraScale+ XCKU15P FPGA.
- 16 nm FinFET FPGA fabric.
- Pluggable module with 4 x Samtec board-to-board connectors.
- 2 x 5 GB 80-bit DDR4 SDRAM banks, for 10 GB total memory.
- 2 x 64 MB QSPI Flash devices.
- 1 x PCIe Gen3 x16 interface.
- 32 x GTH transceivers supporting data rates up to 16.3 Gbps.
- 24 x GTY transceivers supporting data rates up to 28.21 Gbps.
- 210 FPGA I/Os, including 88 HD I/Os and 122 HP I/Os.
- -40°C to +85°C operating temperature range.
- 12 V single-supply operation.
- 80 x 80 mm module form factor.
- Suitable for use with a custom carrier board or the AXKU15-D development board.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Module type | FPGA system-on-module |
| FPGA device | XCKU15P-2FFVE1517I |
| FPGA family | Kintex UltraScale+ |
| FPGA process technology | 16 nm FinFET |
| DDR4 SDRAM | 10 GB total, 80-bit interface per memory bank |
| DDR4 memory organization | 2 x 5 GB |
| QSPI Flash | 2 x 64 MB |
| PCI Express | 1 x PCIe Gen3 x16 |
| GTH transceivers | 32, up to 16.3 Gbps |
| GTY transceivers | 24, up to 28.21 Gbps |
| FPGA I/Os | 210 total |
| HD I/Os | 88 |
| HP I/Os | 122 |
| Board-to-board connectors | 4 x Samtec connectors |
| Power input | 12 V single supply |
| Operating temperature | -40°C to +85°C |
| Dimensions | 80 x 80 mm |
3) Tech Support/Documents
Web available technical information usually covers the ACKU15-D V1.0 user manual, module architecture, FPGA device information, DDR4 memory, QSPI Flash, PCIe Gen3 connectivity, GTH and GTY transceivers, FPGA I/O resources, power requirements, operating temperature, mechanical dimensions, and carrier-board design requirements. There are the following technical resources:
- ACKU15-D V1.0 User Manual
- Module architecture and interface information
- FPGA, DDR4, QSPI Flash, and PCIe specifications
- GTH, GTY, and FPGA I/O information
- Carrier-board design information
- Development demonstrations and tutorials
Contact Mirifica Industrial for further detailed information for your project.
