Description and Technical Data:
1) Overview/Key Features

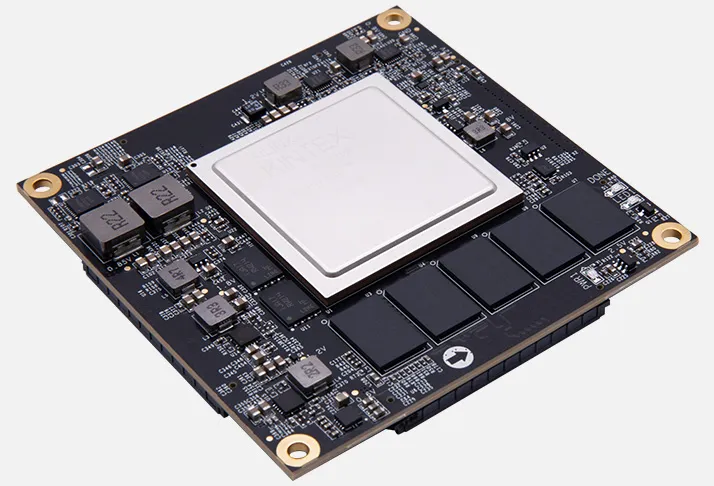

The ACKU15S is a high-performance Kintex UltraScale+ FPGA system-on-module based on the XCKU15P device. It combines programmable logic, DDR4 SDRAM, QSPI Flash, high-speed GTH and GTY transceivers, and PCIe Gen3 connectivity in a compact 80 x 80 mm pluggable module. The module is suitable for data-center network acceleration, storage acceleration, PON access, optical transport, industrial and medical imaging, machine vision, wired communications, radio, and baseband applications.
- Kintex UltraScale+ XCKU15P FPGA.
- 16 nm FinFET FPGA fabric.
- Pluggable module with 4 x Samtec board-to-board connectors.
- 5 GB 80-bit DDR4 SDRAM.
- 2 x 64 MB QSPI Flash devices.
- 1 x PCIe Gen3 x16 interface.
- 32 x GTH transceivers supporting data rates up to 16.3 Gbps.
- 24 x GTY transceivers supporting data rates up to 28.21 Gbps.
- 344 FPGA I/Os, including 88 HD I/Os and 256 HP I/Os.
- -40°C to +85°C operating temperature range.
- 12 V single-supply operation.
- 80 x 80 mm module form factor.
- Suitable for use with a custom carrier board or the AXKU15S development board.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Module type | FPGA system-on-module |
| FPGA device | XCKU15P-2FFVE1517I |
| FPGA family | Kintex UltraScale+ |
| FPGA process technology | 16 nm FinFET |
| DDR4 SDRAM | 5 GB, 80-bit interface |
| QSPI Flash | 2 x 64 MB |
| PCI Express | 1 x PCIe Gen3 x16 |
| GTH transceivers | 32, up to 16.3 Gbps |
| GTY transceivers | 24, up to 28.21 Gbps |
| FPGA I/Os | 344 total |
| HD I/Os | 88 |
| HP I/Os | 256 |
| Board-to-board connectors | 4 x Samtec connectors |
| Power input | 12 V single supply |
| Operating temperature | -40°C to +85°C |
| Dimensions | 80 x 80 mm |
3) Tech Support/Documents
Web available technical information usually covers the ACKU15S V1.0 user manual, module architecture, FPGA device information, DDR4 memory, QSPI Flash, PCIe Gen3 connectivity, GTH and GTY transceivers, FPGA I/O resources, power requirements, operating temperature, mechanical dimensions, and carrier-board design requirements. There are the following technical resources:
- ACKU15S V1.0 User Manual
- Module architecture and interface information
- FPGA, DDR4, QSPI Flash, and PCIe specifications
- GTH, GTY, and FPGA I/O information
- Carrier-board design information
- Development demonstrations and tutorials
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- AXKU15-D FPGA Dev Board & Kit with Kintex UltraScale+ XCKU15P
- AXKU15 FPGA Dev Board & Kit with Kintex UltraScale+ XCKU15P
- AXKU15S FPGA Dev Board & Kit with Kintex UltraScale+ XCKU15P
- AXVP1502P Dev Board & Kit with Versal Premium XCVP1502
- ACKU15-D FPGA SoM with Kintex UltraScale+ XCKU15P
- ACKU15 FPGA SoM with Kintex UltraScale+ XCKU15P
- ADM6-60-01.5-L-4-2-A-TR 240-PIN Board-to-Board Connectors
- AXKU3 FPGA Dev Board & Kit with Kintex UltraScale+ XCKU3P
- AXKU5 FPGA Dev Board & Kit with Kintex UltraScale+ XCKU5P
- ACKU040 FPGA SoM with Kintex UltraScale XCKU040
- AXKU062 FPGA Dev Board & Kit with Kintex UltraScale XCKU060
- ACAU15 FPGA SoM with Artix UltraScale+ XCAU15P
- AXAU15 FPGA Dev Board & Kit with Artix UltraScale+ XCAU15P
- AXU15EGB Dev Board & Kit with Zynq UltraScale+ MPSoC ZU15EG
- Z19-P Dev Board & Kit with Zynq UltraScale+ MPSoC XCZU19EG
- Z7-P Dev Board & Kit with Zynq UltraScale+ MPSoC XCZU7EV
- AXU5EVB-P Dev Board & Kit with Zynq UltraScale+ MPSoC ZU5EV
- AXU5EVB-E Dev Board & Kit with Zynq UltraScale+ MPSoC ZU5EV
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x Kintex UltraScale+ FPGA SoM
