Description and Technical Data:
1) Overview/Key Features

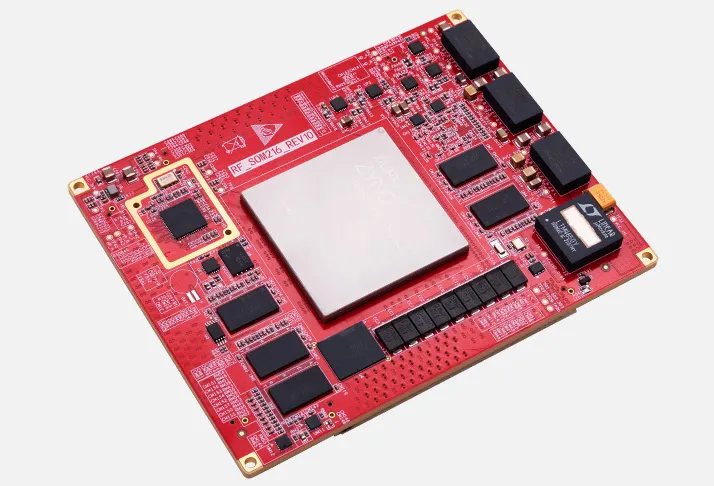

The ALINX ACRF49 is a high-performance RF system-on-module based on the AMD Zynq UltraScale+ RFSoC Gen 3 XCZU49DR. It combines high-speed RF data converters, ARM processing resources, FPGA programmable logic, DDR4 memory, Quad-SPI Flash, and high-speed board-to-board interfaces for demanding RF and digital-signal-processing applications.
- AMD Zynq UltraScale+ RFSoC Gen 3 XCZU49DR
- 16-channel 14-bit RF-ADC capability with sampling rates up to 2.5 GSPS
- 16-channel 14-bit RF-DAC capability with sampling rates up to 9.85 GSPS
- Quad-core ARM Cortex-A53 application-processing system
- Dual-core ARM Cortex-R5F real-time-processing system
- Integrated FPGA programmable logic for high-throughput signal processing
- High-speed board-to-board connections with data rates up to 32 Gbps per channel
- Interfaces for RF-ADC, RF-DAC, clocking, MIO, GTY transceivers, and configurable I/O voltages
- High-speed DDR4 SDRAM and dual Quad-SPI Flash memory
- Suitable for 5G baseband processing, large-scale MIMO, fixed wireless access, cable access, radar, satellite positioning, software-defined radio, and test and measurement
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | RF system-on-module |
| RFSoC device | Zynq UltraScale+ RFSoC Gen 3 XCZU49DR |
| Application processor | Quad-core ARM Cortex-A53 |
| Real-time processor | Dual-core ARM Cortex-R5F |
| RF-ADC channels | 16 channels |
| RF-ADC resolution | 14-bit |
| Maximum RF-ADC sampling rate | 2.5 GSPS |
| RF-DAC channels | 16 channels |
| RF-DAC resolution | 14-bit |
| Maximum RF-DAC sampling rate | 9.85 GSPS |
| Programmable logic | Integrated FPGA programmable logic |
| DDR4 SDRAM | High-speed DDR4 memory |
| Quad-SPI Flash | 2 x 512 Mbit Quad-SPI Flash devices |
| High-speed board-to-board interface | Up to 32 Gbps per channel |
| Exported signals | RF-ADC, RF-DAC, clock, MIO, GTY transceivers, and configurable I/O voltage interfaces |
| Target applications | 5G, large-scale MIMO, fixed wireless access, cable access, radar, satellite positioning, software-defined radio, and test and measurement |
3) Tech Support/Dokuments
Web available technical information usually covers the ACRF49 system-on-module architecture, the XCZU49DR RFSoC device, RF-ADC and RF-DAC resources, ARM processing, programmable logic, DDR4 memory, Quad-SPI Flash, clocking, GTY transceivers, MIO connections, configurable I/O voltages, and high-speed board-to-board interfaces.
There are the following types of technical resources associated with this platform:
- ACRF49 system-on-module documentation
- RFSoC hardware specifications
- RF-ADC and RF-DAC interface information
- Memory and storage descriptions
- Connector and signal assignments
- Clocking and high-speed transceiver information
- FPGA and embedded-processor development information
- RF signal-processing application material
- Reference information for 5G, MIMO, radar, satellite, and test-equipment applications
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
No separately identified add-on products were found in the available product information for the ACRF49. The module is intended for use with a compatible carrier or base board.
5) Downloads/Links
6) What is in the package
- 1 x ACRF49 RFSoC board
