Description and Technical Data:
1) Overview/Key Features

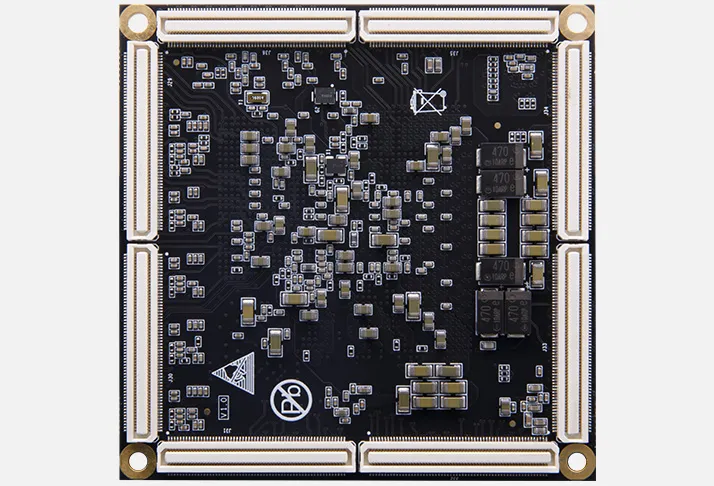

The ACU19EG is a high-performance system-on-module featuring the AMD Zynq UltraScale+ MPSoC XCZU19EG. It combines quad-core ARM Cortex-A53 application processing, dual-core ARM Cortex-R5F real-time processing, Mali-400 MP2 graphics, programmable FPGA logic, high-speed DDR4 memory, eMMC Flash, QSPI Flash, and multiple high-speed transceivers. The module is designed for artificial intelligence, deep learning, automotive systems, industrial control, machine vision, medical equipment, video and image processing, data centers, 5G communications, and other demanding embedded applications.
- AMD Zynq UltraScale+ MPSoC XCZU19EG-2FFVC1760I.
- Quad-core ARM Cortex-A53 processor up to 1.3 GHz.
- Dual-core ARM Cortex-R5F processor up to 533 MHz.
- Mali-400 MP2 GPU.
- 16 nm FinFET+ programmable logic fabric.
- 5 GB 72-bit DDR4 SDRAM with ECC on the processing system.
- 4 GB 64-bit DDR4 SDRAM on the programmable logic side.
- 2 x 64 MB QSPI Flash devices.
- 32 GB eMMC Flash.
- PCIe Gen3 x16 on the programmable logic side.
- PCIe Gen2 x4 on the processing system side.
- 4 x GTR transceivers up to 6 Gbps.
- 32 x GTH transceivers up to 16.3 Gbps.
- 16 x GTY transceivers up to 28.21 Gbps.
- 54 processing-system MIOs and 336 FPGA I/Os.
- Pluggable module with 8 x board-to-board connectors.
- Operating temperature range from -40°C to +85°C.
- 12 V single-supply operation.
- 80 x 80 mm form factor.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Module type | Zynq UltraScale+ MPSoC system-on-module |
| MPSoC device | XCZU19EG-2FFVC1760I |
| Application processor | Quad-core ARM Cortex-A53, up to 1.3 GHz |
| Real-time processor | Dual-core ARM Cortex-R5F, up to 533 MHz |
| Graphics processor | Mali-400 MP2 GPU |
| Programmable logic technology | 16 nm FinFET+ |
| DDR4 SDRAM, PS | 5 GB, 72-bit interface, ECC |
| DDR4 SDRAM, PL | 4 GB, 64-bit interface |
| QSPI Flash | 2 x 64 MB |
| eMMC Flash | 32 GB |
| PCI Express, PL | PCIe Gen3 x16 |
| PCI Express, PS | PCIe Gen2 x4 |
| GTR transceivers | 4, up to 6 Gbps |
| GTH transceivers | 32, up to 16.3 Gbps |
| GTY transceivers | 16, up to 28.21 Gbps |
| Processing-system I/O | 54 PS MIOs |
| FPGA I/O | 336 FPGA I/Os, including 96 HD and 240 HP I/Os |
| Board-to-board connectors | 8 x pluggable module connectors |
| Operating temperature | -40°C to +85°C |
| Power input | 12 V single supply |
| Dimensions | 80 x 80 mm |
3) Tech Support/Documents
Web available technical information usually covers the ACU19EG V2.0 and V1.0 user manuals, schematic information, 3D mechanical data, module architecture, MPSoC configuration, memory resources, transceiver interfaces, PCIe connectivity, power requirements, operating temperature, and supported application areas. There are the following technical resources:
- ACU19EG V2.0 User Manual
- ACU19EG V1.0 User Manual
- ACU19EG Schematic Diagram
- ACU19EG 3D STEP mechanical model
- Module architecture and interface information
- Development demonstrations and tutorials
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- Z19-P Dev Board & Kit with AMD Zynq UltraScale+ MPSoC XCZU19EG
- Panasonic AXK6A2337YG 120 PIN Board-to-Board Connectors
- FAN8080 Heatsink Kit
- Z19 Dev Board & Kit with AMD Zynq UltraScale+ MPSoC XCZU19EG
- AXU15EGB Dev Board & Kit with AMD Zynq UltraScale+ MPSoC ZU15EG
- AXU9EGB Dev Board & Kit with AMD Zynq UltraScale+ MPSoC ZU9EG
- Z7-P Dev Board & Kit with AMD Zynq UltraScale+ MPSoC XCZU7EV
- AXU5EVB-P Dev Board & Kit with AMD Zynq UltraScale+ MPSoC ZU5EV
- AXU4EVB-P Dev Board & Kit with AMD Zynq UltraScale+ MPSoC ZU4EV
- AXU5EVB-E Dev Board & Kit with AMD Zynq UltraScale+ MPSoC ZU5EV
- AXU4EVB-E Dev Board & Kit with AMD Zynq UltraScale+ MPSoC ZU4EV
5) Downloads/Links
- ACU19EG V2.0 User Manual 2026-09-15 Download
- ACU19EG V1.0 User Manual 2026-09-15 Download
- ACU19EG Schematic Diagram 2023-03-10 Download
- ACU19EG 3D STEP 2023-03-10 Download
6) What is in the package
The package contains.
- 1 x MPSoC SoM
