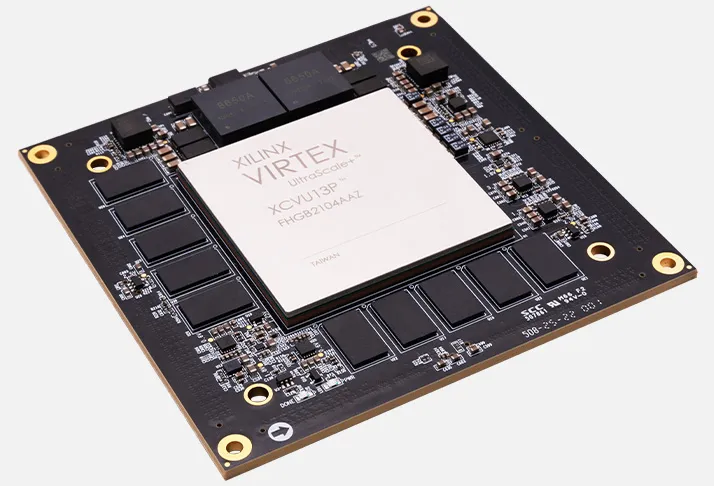

ACVU13 FPGA SoM with AMD Virtex US+ XCVU13P
Alinx

ACVU13 FPGA SoM with AMD Virtex US+ XCVU13P

9,841.22 € 9,841.22 €

Add to cart
Stock Level:
  • 10 ● available now
  • more ● usually available fast (we receive 2 weekly express bulk shipments from factory stock)
Origin of Goods: China
HS Code: 8471800000


Description and Technical Data:

1) Overview/Key Features

The AXVU13G is a professional-grade FPGA development and validation platform built around the AMD Xilinx Virtex UltraScale+ XCVU13P FPGA. It is specifically engineered for ultra-high-speed data exchange, complex algorithm acceleration, compute acceleration, machine learning, and AI workloads. The board features a pluggable system-on-module design architecture and supports rich high-speed communication interfaces like QSFP-DD and QSFP28 alongside FMC+ and FMC HPC expansion capabilities.

  • High-Bandwidth Network Interfaces: Features 2 x QSFP-DD (200Gbps) and 7 x QSFP28 (100Gbps) ports.
  • Advanced Compute Architecture: Powered by a 16nm FinFET FPGA fabric containing 3,780K System Logic Cells and 12,288 DSP Slices.
  • Massive Storage Capacity: Equipped with 20 GB DDR4 SDRAM and 2 x 128 MB QSPI Flash memory.
  • Versatile Prototyping: Includes 1 x FMC+ and 1 x FMC HPC slot for custom hardware add-on boards.

NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.

2) Tech Specs

SpecificationDetail
FPGA Core ChipVirtex UltraScale+ XCVU13P-2FHGB2104I
Logic & DSP3,780K System Logic Cells, 12,288 DSP Slices
Memory20 GB DDR4 SDRAM, 2 x 128 MB QSPI Flash
Interfaces2 x QSFP-DD, 7 x QSFP28, 1 x FMC+, 1 x FMC HPC

3) Tech Support/Dokuments

Web available technical information usually covers user guides, application notes, and design resources. There are the following reference materials and documentation assets accessible for system developers. Contact Mirifica Industrial for further detailed information for your project.

4) Related Product

Suggestion:  ACVU13 FPGA SoM (Pluggable core module available separately)

5) Downloads/Links

6) What is in the package

The package contains:

  • 1 x System-on-Module
  • 1 x Base Board
  • 1 x Mini USB Cable
  • 1 x USB Downloader Cable / set
  • 1 x 12V Power Adapter
  • 1 x Heatsink Kit (preinstalled)
  • 6 x SMA Cable
  • 7 x SMA elbow
  • 1 x SD Card
