Description and Technical Data:
1) Overview/Key Features

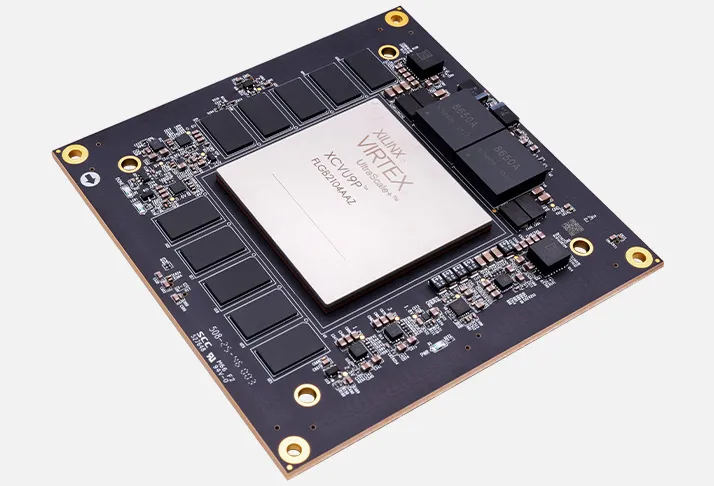

The ACVU9 is a compact FPGA System-on-Module based on the AMD/Xilinx Virtex UltraScale+ XCVU9P FPGA. It is designed for high-performance data acceleration, network processing, machine learning, AI, wired communications, 5G baseband, radar, test and measurement, emulation, and prototyping applications. The pluggable module uses 8 x Samtec board-to-board connectors for integration with a custom carrier board.
- Virtex UltraScale+ XCVU9P FPGA
- 16 nm FinFET FPGA fabric
- 2,586K system logic cells
- 6,840 DSP slices
- 76 GTY transceivers supporting data rates up to 28.21 Gbps
- 377 FPGA high-performance I/O connections
- 2 x 10 GB DDR4 SDRAM interfaces with 80-bit width
- 256 MB QSPI Flash
- 8 x Samtec board-to-board connectors
- Operating temperature range from -40°C to +85°C
- 12 V single-supply operation
- 106 x 106 mm module form factor
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | XCVU9P-2FLGB2104 |
| FPGA family | Virtex UltraScale+ |
| FPGA process technology | 16 nm FinFET |
| System logic cells | 2,586K |
| DSP slices | 6,840 |
| GTY transceivers | 76; up to 28.21 Gbps |
| FPGA high-performance I/O | 377 |
| DDR4 SDRAM | 20 GB total; 2 x 10 GB with 80-bit interfaces |
| QSPI Flash | 256 MB |
| Board-to-board connectors | 8 x Samtec connectors |
| Module type | Pluggable FPGA System-on-Module |
| Operating temperature | -40°C to +85°C |
| Power input | 12 V single supply |
| Module dimensions | 106 x 106 mm |
3) Tech Support/Documents
Web available technical information usually covers the FPGA architecture, system logic resources, DSP slices, GTY transceivers, high-performance I/O, DDR4 memory, QSPI Flash, board-to-board connectivity, thermal requirements, power input, operating temperature, and suitable data-acceleration and network-processing applications. There are the following technical resources:
- ACVU9 V1.0 user manual
- Module feature and interface descriptions
- Product specifications and product selection information
- Development demonstrations and tutorials
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- ADM6-60-01.5-L-4-2-A-TR 240-pin high-speed board-to-board connectors for custom carrier-board development
- Heatsink Kit for module cooling
- AXVU9G Virtex UltraScale+ FPGA development board and kit for evaluation and development
- AXVU13G Virtex UltraScale+ FPGA development board and kit
- AXVU13F Virtex UltraScale+ FPGA development board and kit
- AXVU13P Virtex UltraScale+ FPGA development board and kit
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x Virtex UltraScale+ FPGA System-on-Module
More Details:
FPGA Modules
