Description and Technical Data:
1) Overview/Key Features
The ALINX AL321 is a Xilinx Platform Cable-style USB downloader and JTAG debugging cable for FPGA and SoC development boards. It is intended for device programming, configuration-memory programming and hardware debugging using Xilinx development tools. The cable supports Xilinx FPGA, CPLD, ISP PROM and related programmable logic devices, with automatic target-I/O-voltage detection and level translation.
Key features include:
- Supports Xilinx ISE 12.1–14.7
- Supports Vivado versions listed by the manufacturer
- Supports iMPACT and ChipScope
- Compatible with Windows and Linux systems
- Automatic detection and adaptation to target I/O voltage
- Supports 3.3 V, 2.5 V, 1.8 V and 1.5 V interfaces
- Integrated voltage-level translation
- LED status indication
- Can program SPI-interface Flash PROM devices
- 10-pin connector with 2.54 mm pitch
- 14-pin connector with 2.00 mm pitch
- Supports Xilinx Spartan, XC9500, CoolRunner, XC18V00, Platform Flash and XC4000 device families
Minimum orders may apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product model | AL321 |
| Product type | Xilinx Platform Cable FPGA USB downloader and JTAG debugger |
| Primary function | FPGA/SoC programming, configuration and JTAG debugging |
| Host interface | USB |
| Target interfaces | 10-pin, 2.54 mm pitch; 14-pin, 2.00 mm pitch |
| Target-voltage detection | Automatic |
| Supported target voltages | 3.3 V, 2.5 V, 1.8 V and 1.5 V |
| Supported operating systems | Windows and Linux |
| Supported Xilinx tools | ISE 12.1–14.7, Vivado, iMPACT and ChipScope |
| SPI Flash programming | Supported |
| Status indication | LED |
| Supported device families | Spartan FPGA, XC9500/XC9500XL/XC9500XV CPLD, CoolRunner XPLA3/CoolRunner-II CPLD, XC18V00 ISP PROM, Platform Flash XCF00S/XCF00P and XLPROM, and XC4000 FPGA |
| Included target cable | 14-core, 2.00 mm ribbon cable |
3) Tech Support/Dokuments
Web available technical information usually covers the AL321’s intended use, supported Xilinx development tools and device families, target-voltage compatibility, connector formats, operating-system support, LED status indication, SPI Flash programming and included accessories. The cable is intended for FPGA and SoC development-board programming and debugging.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
Manufacturer-listed related products include:
- Z7-P Development Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU7EV
- AXU3EGB Development Board & Kit with AMD Zynq UltraScale+ MPSoC ZU3EG
- AXU2CGB Development Board & Kit with AMD Zynq UltraScale+ MPSoC ZU2CG
- AX7Z100B FPGA Development Board & Kit with AMD Zynq™ 7000 SoC XC7Z100
- AX7015B FPGA Development Board & Kit with AMD Zynq 7000 SoC XC7Z015
- AX7021 FPGA Development Board & Kit with AMD Zynq 7000 SoC XC7Z020
- AX7Z020B FPGA Development Board & Kit with AMD Zynq 7000 SoC XC7Z020
- AXKU5 FPGA Development Board & Kit with AMD Kintex™ UltraScale+™ XCKU5P
- AXAU15 FPGA Development Board & Kit with AMD Artix™ UltraScale+™ XCAU15P
- AV7K325 FPGA Development Board & Kit with AMD Kintex™ 7 XC7K325T
- AX7A200B FPGA Development Board & Kit with AMD Artix™ 7 XC7A200T
- AX7101 FPGA Development Board & Kit with AMD Artix 7 XC7A100T
- AX7202 FPGA Development Board & Kit with AMD Artix 7 XC7A200T
- AX7203 FPGA Development Board & Kit with AMD Artix 7 XC7A200T
- AX7050 FPGA Development Board & Kit with AMD Spartan™ 7 XC7S50
5) Downloads/Links
---

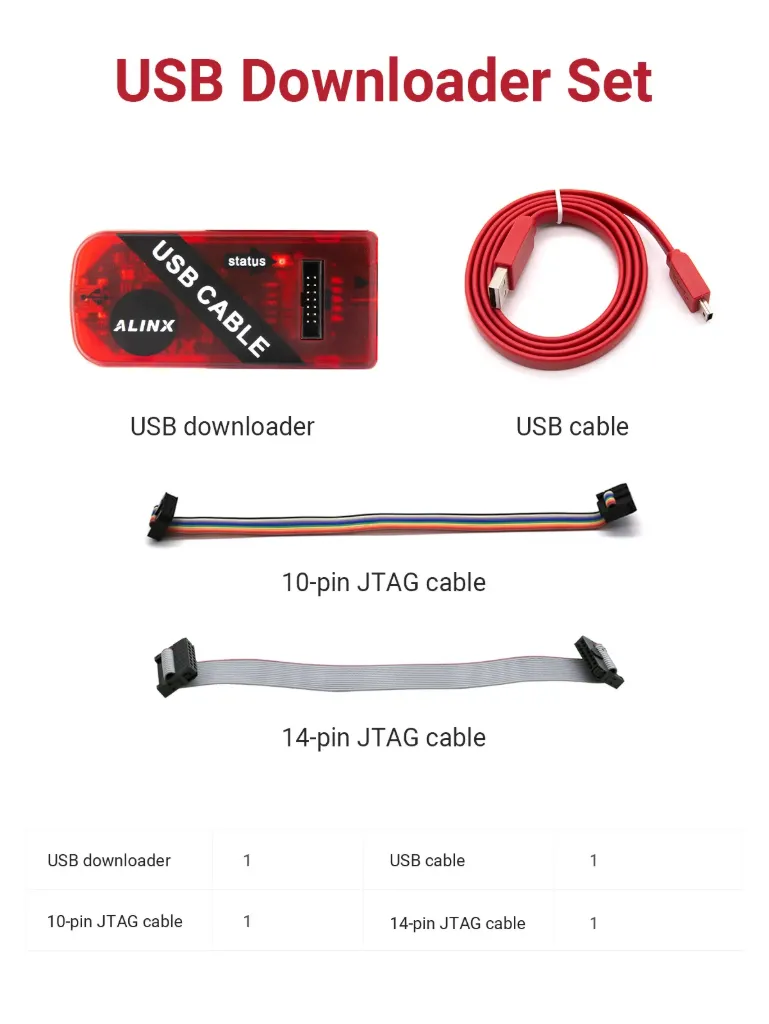

6) What is in the package
The package contains.
- 1 × USB downloader cable
- 1 × USB cable
- 1 × 14-core, 2.00 mm ribbon cable
