Description and Technical Data:
1) Overview/Key Features

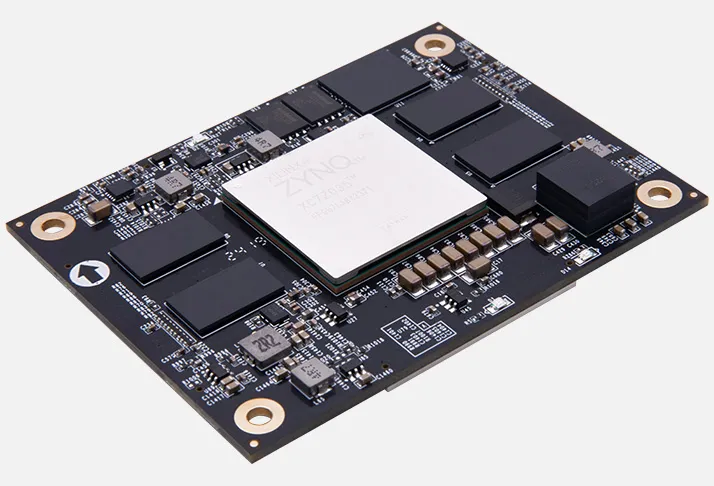

The AC7Z035B is a Zynq-7000 SoC system-on-module based on the XC7Z035-2FFG676I device. It combines a dual-core ARM Cortex-A9 processing system with programmable FPGA logic, DDR3 memory, eMMC Flash, QSPI Flash, and high-speed GTX transceivers in a compact plug-in module. The AC7Z035B is suitable for industrial control, communications, video and image processing, medical equipment, automotive systems, and instrumentation applications.
Key features:
• XC7Z035-2FFG676I Zynq-7000 SoC
• Dual-core ARM Cortex-A9 processor up to 800 MHz
• 1 GB DDR3 SDRAM for the processing system
• 1 GB DDR3 SDRAM for the programmable logic
• 64 MB QSPI Flash
• 8 GB eMMC Flash
• 8 x GTX transceivers up to 12.5 Gbps
• PCIe Gen2 x8 interface through the programmable logic
• 37 PS MIOs
• 188 FPGA I/Os
• 4 x Panasonic board-to-board connectors
• 5 V single-supply operation
• -40°C to +85°C operating temperature range
• 80 x 60 mm module dimensions
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | Zynq-7000 SoC system-on-module |
| SoC device | XC7Z035-2FFG676I |
| Processor | Dual-core ARM Cortex-A9 |
| Maximum processor frequency | Up to 800 MHz |
| Processing-system DDR3 | 1 GB, 32-bit |
| Programmable-logic DDR3 | 1 GB, 32-bit |
| QSPI Flash | 64 MB |
| eMMC Flash | 8 GB |
| GTX transceivers | 8 x |
| Maximum GTX data rate | Up to 12.5 Gbps |
| PCI Express | PCIe Gen2 x8 through programmable logic |
| PS MIOs | 37 |
| FPGA I/Os | 188 |
| Board-to-board connectors | 4 x Panasonic connectors |
| Supply voltage | 5 V single supply |
| Operating temperature | -40°C to +85°C |
| Module dimensions | 80 x 60 mm |
| Applications | Industrial, medical, automotive, video and image processing, control and instrumentation, and communications |
3) Tech Support/Documents
Web available technical information usually covers the AC7Z035B Zynq-7000 SoC architecture, ARM Cortex-A9 processing system, FPGA resources, DDR3 memory, eMMC Flash, QSPI Flash, GTX transceivers, PCIe interface, user I/O, board-to-board connectors, power supply, dimensions, operating temperature, and application areas. There are the following types of technical information available:
• Product overview
• Module feature information
• SoC device information
• Memory specifications
• GTX transceiver information
• PCIe interface information
• I/O information
• Power supply information
• Mechanical information
• Application information
• User manual information
• Demo and tutorial information
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
• AXK6A2337YG high-speed board-to-board connectors
• FAN8060 heatsink kit
• AX7Z035B Zynq-7000 SoC development board
5) Downloads/Links
6) What is in the package
The package contains.
• 1 x AC7Z035B Zynq-7000 SoC system-on-module
