Description and Technical Data:
1) Overview/Key Features

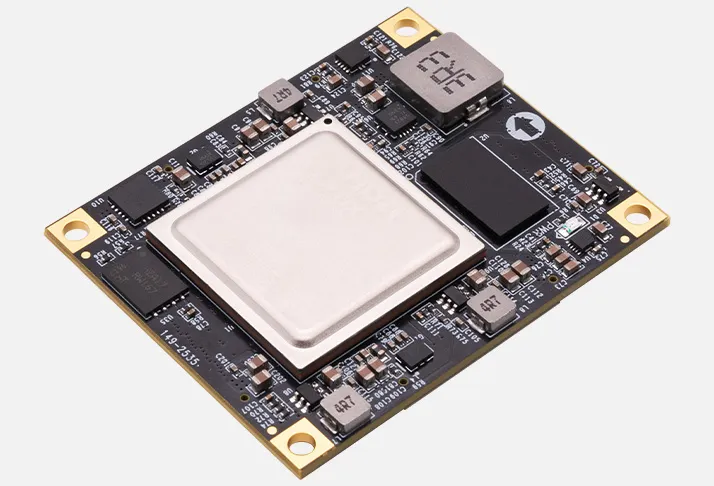

The ACAU25 is an Artix UltraScale+ FPGA system-on-module featuring the XCAU25P-2FFVB676I FPGA, 1 GB DDR4 memory, 32 MB QSPI Flash, clock sources, power circuitry, and 4 x 80-pin board-to-board connectors. The module exposes high-speed GTY transceivers and programmable I/O for integration into industrial and embedded systems.
Key features:
• XCAU25P-2FFVB676I FPGA
• 308K system logic cells
• 1,200 DSP slices
• 12 x GTY transceivers with speeds up to 16.3 Gb/s
• 1 GB DDR4 memory with a 16-bit bus
• 1 x 32 MB QSPI Flash
• 4 x 80-pin Panasonic industrial-grade board-to-board connectors
• 72 HD I/Os
• 102 HP I/Os
• 48 LVDS connections
• 200 MHz differential clock for the FPGA and DDR4
• 156.25 MHz differential clock for the GTY transceivers
• +12 V input through the board-to-board connectors
• 55.0 x 45.0 x 6.8 mm module dimensions
• Industrial-grade operating temperature range of -40°C to +85°C
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Module type | Artix UltraScale+ FPGA system-on-module |
| FPGA device | XCAU25P-2FFVB676I |
| FPGA speed grade | -2 |
| FPGA temperature grade | Industrial |
| System logic cells | 308K |
| CLB flip-flops | 282K |
| CLB LUTs | 141K |
| Distributed RAM | 4.7 Mb |
| Total block RAM | 10.5 Mb |
| 36K block RAM blocks | 300 |
| Clock management tiles | 4 |
| DSP slices | 1,200 |
| PCI Express | 1 x Gen3 x8 |
| AMS system monitor | 1 |
| Maximum single-ended HD I/Os | 96 |
| Maximum single-ended HP I/Os | 208 |
| GTY transceivers | 12 x, up to 16.3 Gb/s |
| DDR4 memory | 1 GB, 16-bit bus, 2400 Mbps |
| QSPI Flash | 1 x 32 MB |
| HD I/Os exposed | 72 |
| HP I/Os exposed | 102 |
| LVDS connections | 48 |
| Board-to-board connectors | 4 x 80-pin industrial-grade connectors |
| FPGA differential clock | 1 x 200 MHz |
| GTY differential clock | 1 x 156.25 MHz |
| Power input | +12 V through board-to-board connectors |
| Power indicator | 1 x PWR LED |
| Push buttons | None specified |
| JTAG | None specified |
| Operating temperature | -40°C to +85°C |
| Module dimensions | 55.0 x 45.0 x 6.8 mm |
| Connector mated height | 3.0 mm |
| PCB construction | 14-layer PCB with independent ground and power layers |
3) Tech Support/Documents
Web available technical information usually covers the ACAU25 system-on-module architecture, FPGA resources, memory, Flash storage, high-speed transceivers, programmable I/O, clock sources, power input, connector arrangement, dimensions, and operating temperature range. There are the following available technical information categories:
• Product overview
• FPGA specifications
• SOM features
• Power supply information
• Mechanical dimensions
• Board-to-board connector information
• User manual information
• Schematics and demo project information, where applicable
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
• AXAU25 carrier board with 1 x FMC HPC interface, 1 x Gigabit Ethernet interface, and 1 x PCIe Gen3 x4 interface
5) Downloads/Links
6) What is in the package
The package contains.
• 1 x FPGA board
