Description and Technical Data:
1) Overview/Key Features

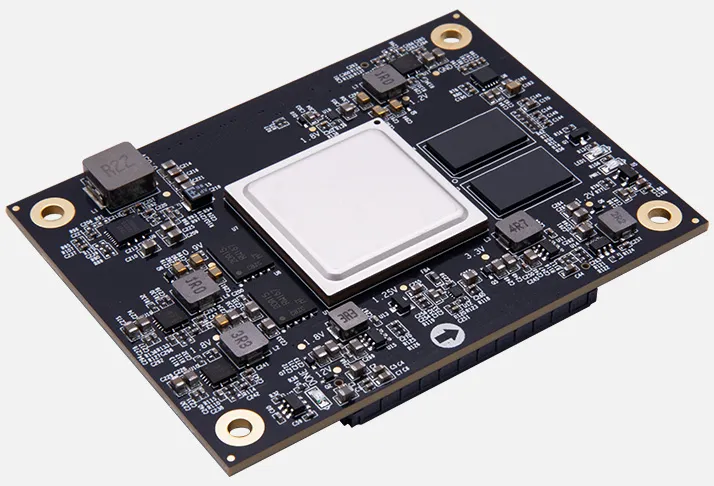

The ACKU3 is a high-performance FPGA System-on-Module based on the AMD/Xilinx Kintex UltraScale+ XCKU3P-2FFVB676I. The module combines a 16 nm FinFET FPGA fabric with high-speed DDR4 SDRAM, parallel Quad-SPI Flash, PCI Express Gen3 connectivity, and high-speed GTY transceivers.
The pluggable 80 mm × 60 mm module is designed for integration into custom carrier boards through 2 Samtec board-to-board connectors. It provides substantial programmable logic, high-speed serial connectivity, and high-bandwidth memory for demanding embedded processing applications.
Typical applications include:
- Data-center network acceleration
- Storage acceleration
- Medical imaging backhaul
- Machine vision
- PON access
- Optical transport networks
- Radio systems
- Wireless baseband processing
Key features include:
- Kintex UltraScale+ FPGA technology with 16 nm FinFET fabric
- Up to 60% lower power consumption compared with 7 Series FPGA devices
- More than 2 × faster system-level performance per watt compared with Kintex-7 FPGA devices
- 2 × Samtec board-to-board connectors
- 2 GB 32-bit DDR4 SDRAM
- 2 × 32 MB Quad-SPI Flash devices
- PCI Express Gen3 ×16 interface
- 16 GTY transceivers operating at up to 28.21 Gbps
- 179 FPGA user I/Os
- 12 V single-supply input
- Industrial operating temperature range from -40°C to +85°C
- 80 mm × 60 mm form factor
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Module model | ACKU3 |
| FPGA device | XCKU3P-2FFVB676I |
| FPGA family | Kintex UltraScale+ |
| FPGA process technology | 16 nm FinFET |
| FPGA speed grade | -2 |
| FPGA temperature grade | Industrial |
| Operating temperature | -40°C to +85°C |
| DDR4 SDRAM | 2 GB, 32-bit |
| Quad-SPI Flash | 2 × 32 MB |
| PCI Express | 1 × PCIe Gen3 ×16 |
| GTY transceivers | 16 |
| Maximum GTY data rate | Up to 28.21 Gbps |
| FPGA user I/Os | 179 |
| Board-to-board connectors | 2 Samtec connectors |
| Input supply | 12 V single supply |
| Module dimensions | 80 mm × 60 mm |
| Module type | Pluggable FPGA System-on-Module |
3) Tech Support/Documents
Web available technical information usually covers the ACKU3 FPGA device, DDR4 SDRAM, Quad-SPI Flash, PCI Express Gen3 interface, GTY transceivers, FPGA user I/Os, power requirements, module dimensions, and operating temperature range.
There are the following technical resources available:
- ACKU3 V1.1 User Manual
- Product documentation
- Module information
- Demonstrations and tutorials
- Development-board information
Contact Mirifica Industrial for further detailed information for your project.
