Description and Technical Data:
1) Overview/Key Features

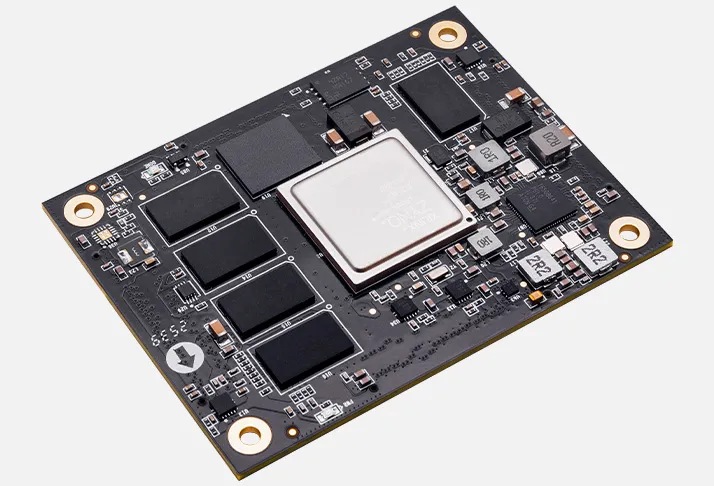

The ACU3EG is a Zynq UltraScale+ MPSoC system-on-module based on the XCZU3EG-1SFVC784I device. It combines application processing, real-time processing, programmable logic, DDR4 memory, eMMC Flash, QSPI Flash, and high-speed transceivers in an 80mm x 60mm module for embedded processing, industrial control, communications, image processing, and other FPGA-based applications.
- XCZU3EG-1SFVC784I Zynq UltraScale+ MPSoC.
- 4 x Arm Cortex-A53 application processors.
- 2 x Arm Cortex-R5 real-time processors.
- 4GB PS DDR4 SDRAM with a 64-bit bus.
- 1GB PL DDR4 SDRAM with a 16-bit bus.
- 32MB QSPI Flash.
- 32GB eMMC Flash.
- 4 high-speed GTR transceivers.
- 4 x 120-pin board-to-board connectors.
- Industrial operating temperature range from -40°C to 85°C.
- 80mm x 60mm module size.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Module type | Zynq UltraScale+ MPSoC system-on-module |
| MPSoC device | XCZU3EG-1SFVC784I |
| Application processors | 4 x Arm Cortex-A53 |
| Real-time processors | 2 x Arm Cortex-R5 |
| PS DDR4 SDRAM | 4GB |
| PL DDR4 SDRAM | 1GB |
| QSPI Flash | 32MB |
| eMMC Flash | 32GB |
| GTR transceivers | 4 |
| Board-to-board connectors | 4 x 120-pin connectors |
| Operating temperature | -40°C to 85°C |
| Module dimensions | 80mm x 60mm |
3) Tech Support/Documents
Web available technical information usually covers the ACU3EG system-on-module, Zynq UltraScale+ MPSoC device, DDR4 SDRAM, QSPI Flash, eMMC Flash, clock configuration, power supply, board-to-board connections, and pin assignments. There are the following technical resources:
- ACU3EG user manual.
- ACU3EG product information.
- Zynq UltraScale+ MPSoC device information.
- DDR4 SDRAM information.
- QSPI Flash and eMMC Flash information.
- Clock configuration information.
- Power-supply information.
- Pin-assignment information.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- AXU3EG Zynq UltraScale+ FPGA development board.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x ACU3EG Zynq UltraScale+ FPGA core board
