Description and Technical Data:
1) Overview/Key Features

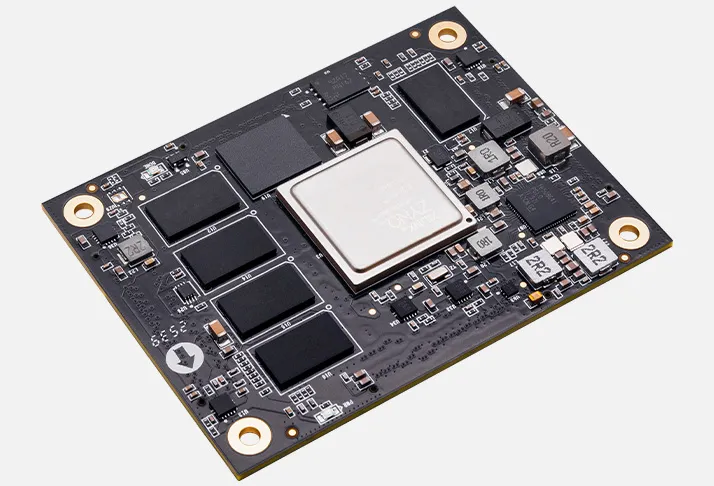

The ACU4EV is a Zynq UltraScale+ MPSoC system-on-module based on the XCZU4EV-1SFVC784I device. It combines quad-core application processing, dual-core real-time processing, programmable logic, GPU acceleration, H.264/H.265 video-codec support, DDR4 memory, eMMC Flash, QSPI Flash, and high-speed interfaces for artificial intelligence, automotive, multimedia, embedded vision, industrial, communication, and video-processing applications.
- XCZU4EV-1SFVC784I Zynq UltraScale+ MPSoC.
- 4 x Arm Cortex-A53 processors operating at up to 1.2GHz.
- 2 x Arm Cortex-R5 processors operating at up to 500MHz.
- Arm Mali-400 MP2 GPU.
- H.264/H.265 video codec.
- 4GB PS DDR4 SDRAM with a 64-bit bus.
- 1GB PL DDR4 SDRAM with a 16-bit bus.
- 8GB eMMC Flash.
- 256Mbit QSPI Flash.
- PCIe Gen2 x4 through the PS and PCIe Gen3 x4 through the PL.
- 4 PS-GTR transceivers supporting data rates up to 6Gb/s.
- 4 PL GTH transceivers supporting data rates up to 12.5Gb/s.
- 4 x tri-mode Gigabit Ethernet interfaces.
- 2 x USB 3.0 interfaces.
- DisplayPort interface.
- 4 x Panasonic board-to-board connectors.
- 54 PS MIO connections and 180 FPGA I/O connections.
- Industrial temperature range from -40°C to 85°C.
- 80mm x 60mm module form factor.
