Description and Technical Data:
1) Overview/Key Features

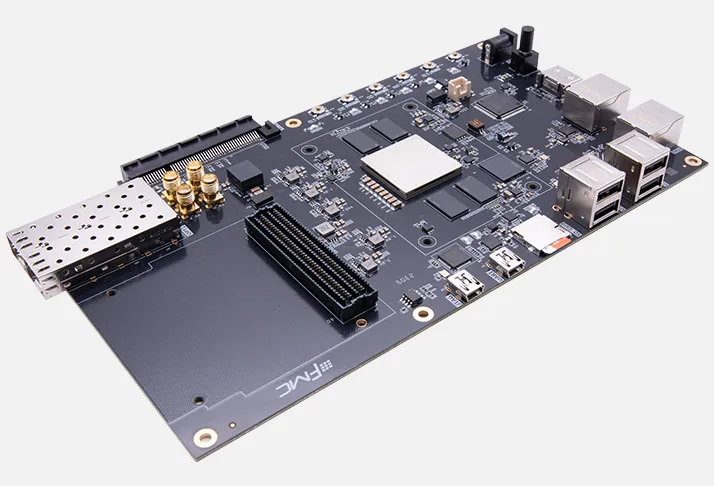

The AX7350B is a Zynq-7000 SoC development board based on the XC7Z035-2FFG676 device. It is designed for high-speed data exchange, data storage, video transmission and processing, fiber-optic and Ethernet communication, and industrial control applications.
- 2GB DDR3 SDRAM: 1GB connected to the PS side and 1GB connected to the PL side.
- 8GB eMMC Flash for operating-system files and user data.
- 256Mbit QSPI Flash for boot files, system files, and user data.
- PCI Express 2.0 x4 interface through a standard PCIe host slot.
- 2 optical-fiber interfaces with data rates of up to 10Gb/s per channel.
- 2 Gigabit Ethernet RJ45 interfaces.
- 1 HDMI video output supporting up to 1080p at 60Hz.
- 4 USB 2.0 Host interfaces.
- 2 USB-to-UART interfaces.
- 1 Micro SD card interface.
- 1 FMC LPC expansion interface with differential I/O and a high-speed GTX transceiver connection.
- USB JTAG interface for system debugging and downloading.
- On-board status LEDs, user LEDs, reset button, PS user button, and PL user buttons.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| SoC device | XC7Z035-2FFG676 Zynq-7000 device |
| PS DDR3 SDRAM | 2 x 512MB DDR3 SDRAM |
| PL DDR3 SDRAM | 2 x 512MB DDR3 SDRAM |
| eMMC Flash | 8GB |
| QSPI Flash | 256Mbit |
| PCI Express | PCI Express 2.0 x4 communication through a standard PCIe host slot |
| Optical-fiber interfaces | 2 channels, up to 10Gb/s per channel |
| Ethernet | 2 x 10/100/1000M Ethernet RJ45 interfaces |
| HDMI | 1 x HDMI output, up to 1080p at 60Hz; 3D output supported |
| USB Host | 4 x USB 2.0 Host, USB Type-A |
| USB-to-UART | 2 x USB-to-UART interfaces using Mini USB connectors |
| Micro SD | 1 x Micro SD card holder |
| FMC expansion | 1 x FMC LPC connector with 34 differential I/O pairs and 1 high-speed GTX transceiver |
| JTAG | 1 x USB JTAG interface |
| PS clock | 33.333MHz active crystal oscillator |
| PL clock | 50MHz active crystal oscillator |
| Indicators | 9 LEDs, including power, configuration, serial communication, PS control, and PL control indicators |
| Buttons | 1 reset button, 1 PS user button, and 4 PL user buttons |
3) Tech Support/Documents
Web available technical information usually covers the development-board introduction, key features, interface descriptions, user-manual topics, hardware resources, and development examples. There are the following technical resources:
- Development-board introduction and feature description.
- User manual information covering the Zynq device, DDR3 SDRAM, QSPI Flash, eMMC Flash, clock configuration, USB-to-serial interfaces, Ethernet, USB 2.0 Host, HDMI, SFP, PCIe, SD card, FMC, LEDs, buttons, JTAG, power supply, fan, and board dimensions.
- Factory demonstration project supporting most of the board peripherals.
- Vivado 2023.1 development-environment information.
- Verilog HDL demonstration and experiment resources.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- AX7350 development board.
- FMC HDMI input and output module.
- FMC binocular camera module.
- FMC high-speed AD module.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x AX7350B development board
