Description and Technical Data:
1) Overview/Key Features

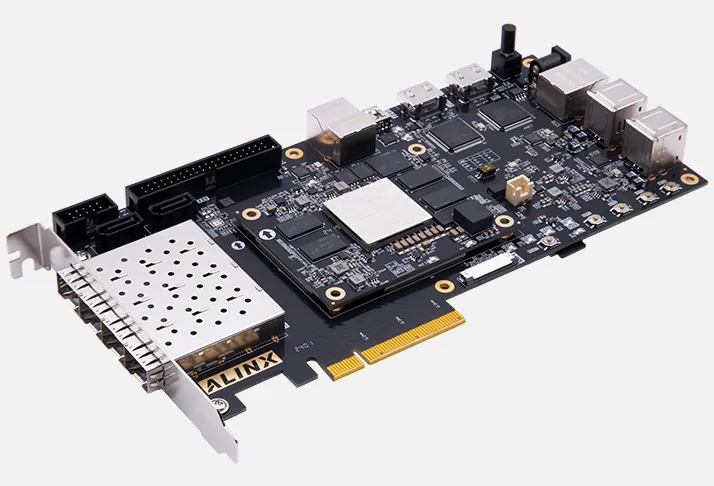

The AX7Z035B is a Zynq-7000 SoC development board based on the XC7Z035-2FFG676 device. It is designed for PCIe applications, video and image processing, fiber-optic and Ethernet communication, high-speed data transfer, and industrial control. The board provides 2GB DDR3 memory, 8GB eMMC Flash, 2 x 256Mbit QSPI Flash devices, PCIe, HDMI, optical-fiber interfaces, Gigabit Ethernet, USB, Micro SD, and extensive programmable-logic I/O.
- XC7Z035-2FFG676 Zynq-7000 device.
- 2 x Arm Cortex-A9 processors.
- 2GB DDR3 SDRAM, with separate PS-side and PL-side memory.
- 8GB eMMC Flash for boot configuration, system files, and user data.
- 2 x 256Mbit Quad-SPI Flash devices with an 8-bit data bus.
- 4 optical-fiber interfaces supporting 1.25G, 2.5G, and 10G SFP modules.
- PCIe x4 interface.
- HDMI input supporting up to 1080p at 60Hz.
- HDMI output supporting up to 1080p at 60Hz.
- 2 x Gigabit Ethernet interfaces.
- 4 x USB 2.0 Host interfaces.
- 2 x USB-to-UART interfaces.
- 1 x Micro SD card interface.
- 1 x standard 40-pin expansion interface with 2.54mm pitch.
- 8 pairs of high-speed GTX transceiver interfaces.
- 144 programmable-logic I/O connections.
- 7 LEDs and 4 user buttons.
- 12V DC power input.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| SoC device | XC7Z035-2FFG676 |
| Processor | 2 x Arm Cortex-A9 |
| PS DDR3 SDRAM | 1GB, 32-bit bus, up to 533MHz operating speed and 1066Mbps data rate |
| PL DDR3 SDRAM | 1GB, 32-bit bus, up to 800MHz operating speed and 1600Mbps data rate |
| QSPI Flash | 2 x 256Mbit, 8-bit data bus, 3.3V CMOS |
| eMMC Flash | 8GB, JEDEC e-MMC V5.0 HS-MMC interface, 1.8V or 3.3V levels |
| Optical-fiber interfaces | 4, supporting compatible 1.25G, 2.5G, and 10G SFP optical modules |
| PCIe | PCIe x4 interface |
| HDMI input | Up to 1080p at 60Hz |
| HDMI output | Up to 1080p at 60Hz |
| Ethernet | 2 x Gigabit Ethernet interfaces |
| USB | 4 x USB 2.0 Host interfaces |
| USB-to-UART | 2 interfaces |
| Micro SD | 1 interface |
| Expansion interface | 1 x 40-pin, 2.54mm-pitch interface |
| GTX transceivers | 8 pairs |
| Programmable-logic I/O | 144 I/O connections |
| Indicators | 7 LEDs, including 1 power indicator, 2 serial-communication indicators, and 4 programmable-logic control indicators |
| Buttons | 1 reset button and 4 user buttons |
| Power input | 12V DC |
| Board size | 80mm x 60mm core-board size |
3) Tech Support/Documents
Web available technical information usually covers the AX7Z035B development-board introduction, Zynq-7000 device resources, DDR3 memory, QSPI Flash, eMMC Flash, HDMI, optical-fiber interfaces, Ethernet, PCIe, USB, Micro SD, expansion I/O, GTX transceivers, board indicators, buttons, and power input. There are the following technical resources:
- AX7Z035B development-board documentation.
- AX7Z035B hardware information and interface descriptions.
- Vivado 2023.1 development-environment information.
- Vitis 2023.1 development-environment information.
- PetaLinux 2023.1 software information.
- Factory demonstration project supporting most board peripherals.
- Verilog HDL and FPGA development examples.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x AX7Z035B development board
