Description and Technical Data:
1) Overview/Key Features

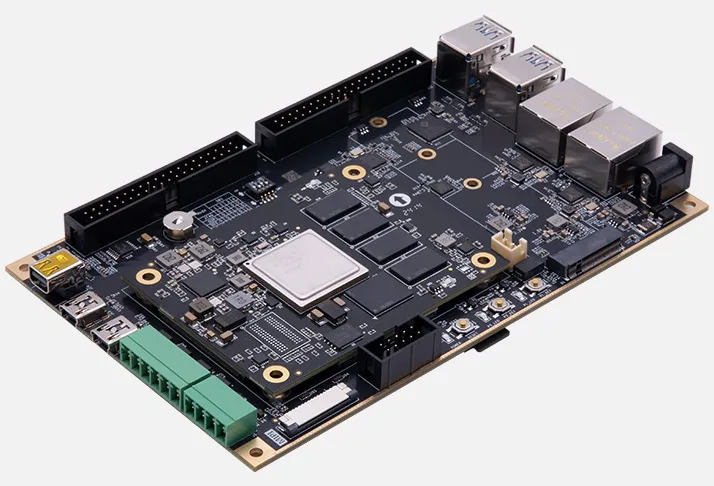

The AXU2CGB-E is a Zynq UltraScale+ MPSoC development board based on the XCZU2CG-1SFVC784E device. It combines dual ARM Cortex-A53 processor cores, dual ARM Cortex-R5 processor cores, programmable logic, DDR4 memory, eMMC storage, QSPI Flash, high-speed interfaces, and expansion interfaces for embedded processing, FPGA development, industrial control, video processing, communications, and artificial intelligence applications.
Key features:
• Zynq UltraScale+ MPSoC XCZU2CG-1SFVC784E
• 2 x ARM Cortex-A53 processor cores at up to 1.2 GHz
• 2 x ARM Cortex-R5 processor cores at up to 500 MHz
• 2 GB DDR4 PS memory with a 64-bit bus
• 8 GB eMMC Flash
• 256 Mbit QSPI Flash
• Mini DisplayPort output supporting up to 4K at 30 Hz or 1080p at 60 Hz
• 2 x Gigabit Ethernet interfaces
• 4 x USB 3.0 interfaces
• 2 x USB-UART interfaces
• M.2 interface for an SSD
• MIPI camera interface
• 2 x RS485 interfaces
• 2 x CAN interfaces
• MicroSD card slot
• 40-pin expansion interface
• 10-pin JTAG interface
• Real-time clock with battery holder
• 5 x user and status LEDs
• Supports Vitis and PetaLinux development environments
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Board type | Zynq UltraScale+ MPSoC development board |
| MPSoC device | XCZU2CG-1SFVC784E |
| Processor application cores | 2 x ARM Cortex-A53, up to 1.2 GHz |
| Processor real-time cores | 2 x ARM Cortex-R5, up to 500 MHz |
| Logic cells | 103K |
| CLB flip-flops | 94K |
| Look-up tables | 47K |
| Block RAM | 5.3 Mb |
| DSP slices | 240 |
| Speed grade | -1 |
| Device temperature grade | Commercial |
| Operating temperature | 0°C to +70°C |
| PS DDR4 memory | 2 GB, 64-bit, 2400 Mbps |
| eMMC Flash | 8 GB |
| QSPI Flash | 256 Mbit |
| HP I/O | 96 |
| HD I/O | 84 |
| Display interface | Mini DisplayPort output |
| Display output | Up to 4K at 30 Hz or 1080p at 60 Hz |
| Ethernet | 2 x 10/100/1000M RJ-45 |
| USB 3.0 | 4 x interfaces |
| USB-UART | 2 x interfaces |
| M.2 interface | 1 x interface for an M.2 SSD |
| MIPI interface | 1 x camera interface |
| RS485 | 2 x interfaces |
| CAN | 2 x interfaces |
| JTAG | 1 x 10-pin, 0.1-inch standard interface |
| MicroSD | 1 x slot; SD mode and SPI mode |
| Real-time clock | 1 x RTC with CR1220 battery holder |
| Temperature sensor | LM75 |
| EEPROM | 24LC04 with I²C interface |
| Crystal oscillator | 33.333 MHz PS clock and 200 MHz PL DDR reference clock |
| Expansion interface | 40-pin expansion port |
| LEDs | 5 x LEDs |
| Development software | Vitis 2020.1 |
| Linux environment | PetaLinux 5.4.0-xilinx-v2020.1 |
3) Tech Support/Documents
Web available technical information usually covers the AXU2CGB-E board architecture, Zynq UltraScale+ MPSoC resources, ARM processor configuration, DDR4 memory, Flash storage, display output, Ethernet, USB, MIPI, M.2, serial communication, CAN, JTAG, MicroSD, clocking, monitoring, and expansion interfaces. There are the following types of technical information available:
• Product overview
• Hardware feature information
• Board specifications
• Interface descriptions
• Development environment information
• Vitis software information
• PetaLinux information
• FPGA experiment and tutorial information
• Hardware documentation and reference information
Contact Mirifica Industrial for further detailed information for your project.
