Description and Technical Data:
1) Overview/Key Features

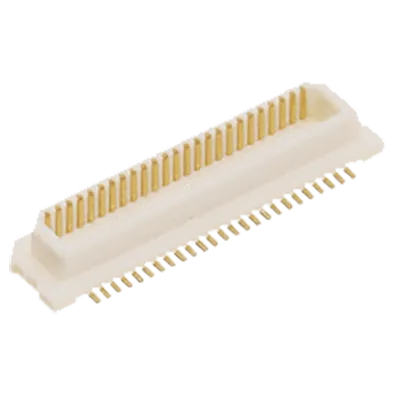

The AXK6A2337YG is a 120-position board-to-board header connector with a 0.5 mm terminal pitch. It is designed for compact, high-density connections between circuit boards, including use between a system-on-module and carrier board. Features include a 3.0 mm mated height, board guides, and gold-plated contacts.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Model | AXK6A2337YG |
| Connector type | Board-to-board header |
| Number of positions | 120 |
| Number of rows | 2 |
| Terminal pitch | 0.5 mm |
| Mated height | 3.0 mm |
| Body length | 33.2 mm |
| Body height | 2.4 mm |
| Width | 4.6 mm |
| Mounting type | Surface mount |
| Contact finish | Gold |
| Rated current | 0.5 A per contact; 10 A maximum total |
| Dielectric strength | 150 V AC for 1 minute |
| Contact resistance | 60 mΩ maximum |
| Insertion/removal life | 50 cycles |
| Compatible mating part | AXK5A2137YG socket |
3) Tech Support/Dokuments
Web available technical information usually covers connector dimensions, electrical ratings, materials, and mating-part identification. There are the following technical resources: no product-specific technical resources could be confirmed on the product page. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The AXK5A2137YG is the compatible mating socket for this connector.
5) Downloads/Links
- No functioning product-specific download links could be confirmed on the product page.
6) What is in the package
The package contains.
- 1 × Board-to-board connector
More Details:
Accessories
