Description and Technical Data:
1) Overview/Key Features

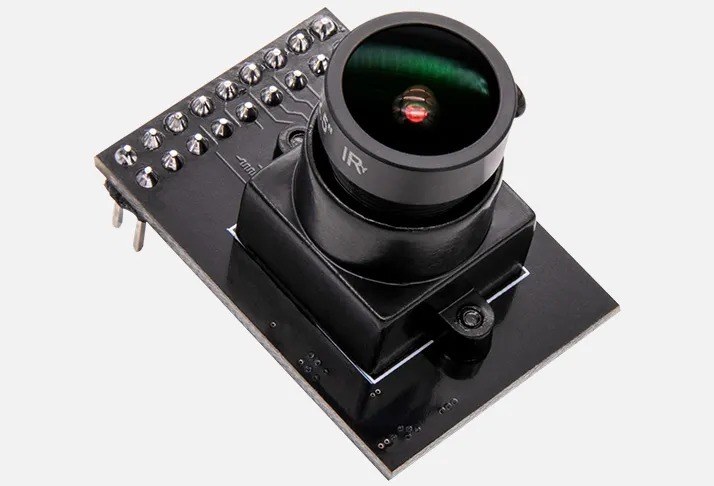

The AN5640 is a 5 MP camera module built around the OV5640 image sensor. It provides a DVP interface for connecting to compatible FPGA development boards and supports multiple image formats and resolutions. The module includes sensor power and flash-drive circuitry, with manual focus, auto exposure control (AEC), and auto white balance (AWB).
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Image sensor | OV5640 |
| Maximum image size | 2592 × 1944 (5 MP) |
| Optical size | 1/4 in |
| Focal length | 3.6 mm |
| Monitoring angle | 80–96° |
| Module interface | 18-pin DVP |
| Supported output formats | RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422, compression |
| Supported image resolutions | QSXGA (2592 × 1944), 1080p, 1280 × 960, VGA (640 × 480), QVGA (320 × 240) |
| Image controls | Manual focus, AEC, AWB |
| Operating temperature | 0–50°C |
3) Tech Support/Dokuments
Web available technical information usually covers the module’s general description, detailed parameters, OV5640 power-on requirements, sensor register configuration, hardware connections, and a VGA display experiment. There are the following technical resources: user manual and OV5640 datasheet reference.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
No related add-on products are identified on the product page.
5) Downloads/Links
- No functioning download links could be confirmed from the product page.
6) What is in the package
The package contains.
- 1 x AN5640 camera module
