Description and Technical Data:
1) Overview/Key Features

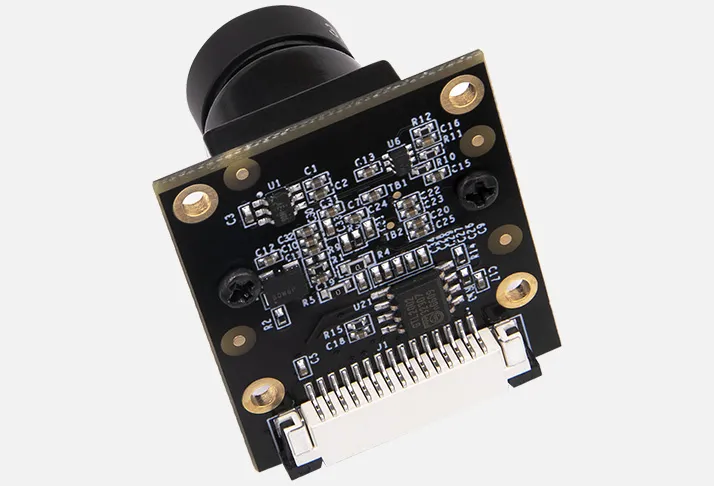

The AN5641 is a 5 MP camera module built around the OV5640 CMOS image sensor. It connects to compatible FPGA development boards using a 2-lane MIPI interface and a 15-pin, 1.0 mm-pitch FPC cable. Camera features include manual focus, automatic exposure control (AEC), and automatic white balance (AWB).
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Image sensor | OV5640 CMOS |
| Resolution | 5 MP; active array 2592 × 1944 |
| Optical size | 1/4 in |
| Lens | M12 (S-Mount), 3.6 mm focal length, 80°–96° angle of view |
| Maximum image transfer rates | 2592 × 1944: 15 fps; 1080p: 30 fps; 1280 × 960: 45 fps; 720p: 60 fps; VGA: 90 fps; QVGA: 120 fps |
| Output formats | RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422, and compression |
| Camera features | Manual focus, AEC, AWB |
| Interface | 2-lane MIPI; 15-pin, 1.0 mm-pitch FPC |
| Operating temperature | −30 °C to 70 °C; stable operation at 0 °C to 50 °C |
| Module dimensions | 35 × 24 × 28 mm |
3) Tech Support/Dokuments
Web available technical information usually covers image sensor specifications, image formats and transfer rates, camera features, and the MIPI/FPC interface. There are the following technical resources: a user manual. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
No related add-on products were confirmed on the product page.
5) Downloads/Links
No functioning download links listed under the product’s Documentation section could be confirmed.
6) What is in the package
The package contains.
- 1 x camera module
- 1 x MIPI cable
