Description and Technical Data:
1) Overview/Key Features

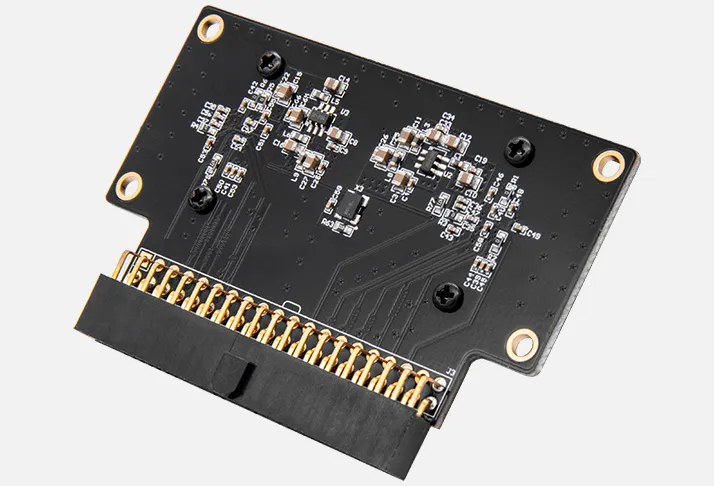

The AN5642 is a dual-lens camera module with 2 OV5640 CMOS image sensors. It supports independent or simultaneous camera output and is intended for FPGA development platforms. The module supports DVP and MIPI sensor interfaces; image transmission to the FPGA is through DVP. Key camera features include manual focus, automatic exposure control, and automatic white balance.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Image sensors | 2 × OV5640 CMOS sensors |
| Sensor resolution | 5 megapixels per sensor; 2592 × 1944 |
| Optical format | 1/4 in |
| Sensor interfaces | DVP and MIPI |
| Module-to-FPGA image interface | DVP |
| Camera operation | Independent or simultaneous output |
| Supported image formats | RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422, and compression |
| Supported image resolutions | QSXGA (2592 × 1944), 1080p, 1280 × 960, VGA (640 × 480), QVGA (320 × 240) |
| Camera spacing | 40 mm between sensor centers |
| Module connector | 40-pin socket, 2.54 mm pitch |
| Operating temperature | 0°C to 50°C |
3) Tech Support/Dokuments
Web available technical information usually covers the dual-sensor camera module, its DVP connection, sensor operation, and FPGA integration. There are the following technical resources: a user manual with hardware connection details and experimental guidance for switching between camera feeds or displaying them simultaneously.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The user manual mentions the AX516 FPGA development kit as a platform for integrating the AN5642.
5) Downloads/Links
6) What is in the package
1 x product
