Description and Technical Data:
1) Overview/Key Features

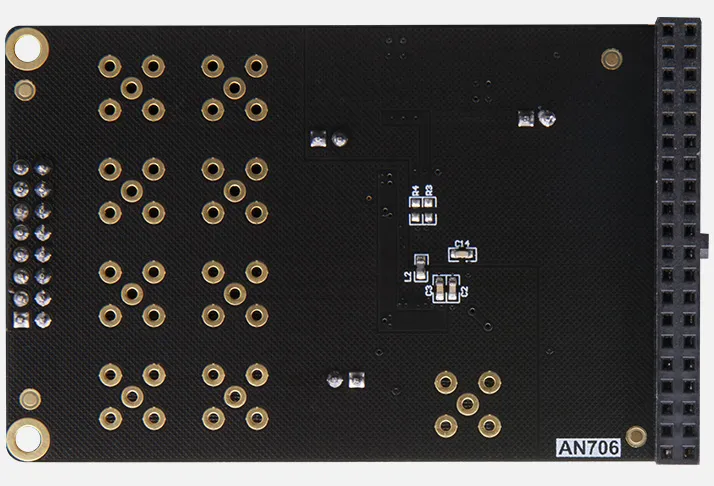

The AN706 is an 8-channel analog-to-digital acquisition module for FPGA development boards. It uses simultaneous sampling with 16-bit resolution and supports an input range of ±5 V, configurable to ±10 V. The module provides up to 200 kSPS sampling, with 8 SMA inputs and a 40-pin interface to the FPGA board.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| ADC resolution | 16 bits |
| Number of channels | 8 |
| Sampling rate | Up to 200 kSPS |
| Input range | ±5 V; configurable to ±10 V |
| Input connectors | 8 SMA connectors |
| Additional input connector | 16-pin, 2.54 mm pitch header |
| FPGA board interface | 40-pin, 2.54 mm pitch header |
| Typical DC accuracy | ±0.5 LSB |
| Operating temperature | −40 °C to 85 °C |
| Module dimensions | 80.94 × 51.05 mm |
| PCB construction | 4 layers |
3) Tech Support/Dokuments
Web available technical information usually covers the module’s specifications, connectors, interface signals, and measurement characteristics. There are the following technical resources: product information and a user manual. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
No related add-on products were identified on the product page.
5) Downloads/Links
- ALINX AN706 User Manual (PDF)
6) What is in the package
The package contains.
- 1 x module
