Description and Technical Data:
1) Overview/Key Features

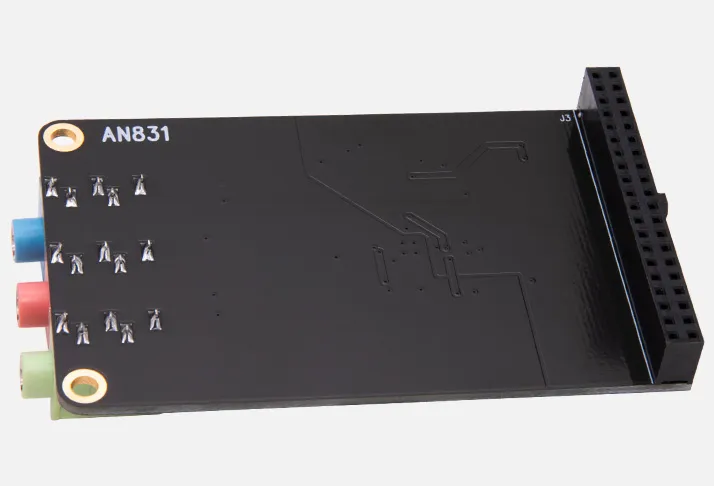

The AN831 is an audio processing add-on module for FPGA development boards. It uses a WM8731 audio codec and provides audio input and output through line-in, microphone, and line-out/headphone jacks. The module connects through a 40-pin header and supports I²C codec control and I²S audio data.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Model | AN831 |
| Product type | Audio processing module |
| Audio codec | WM8731 |
| Control interface | I²C |
| Audio data interface | I²S |
| Board connection | 40-pin header |
| Power supply | 5 V and 3.3 V via header |
| Audio inputs | Line-in; microphone input |
| Audio output | Line-out/headphone |
| Audio connectors | 3.5 mm jacks |
3) Tech Support/Dokuments
Web available technical information usually covers the audio codec, interface signals, header pin assignments, audio jacks, and connection guidance. There are the following technical resources: an AN831 user manual and an audio-module experiment document. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The AX415 Audio Module is identified as a related audio-module document.
5) Downloads/Links
- No functioning product-specific download links could be confirmed.
6) What is in the package
1 x product
More Details:
Add-on Modules
