Description and Technical Data:
1) Overview/Key Features

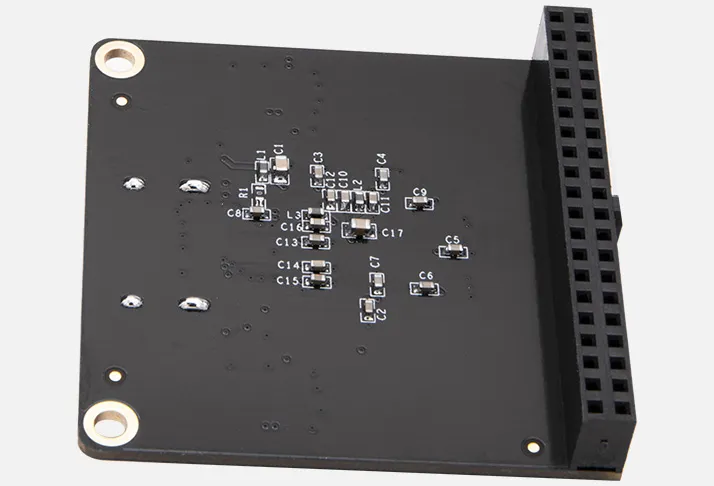

The AN9134 is an HDMI output module for FPGA development boards. It uses a Silicon Image SiI9134 transmitter and supports HDMI 1.4 output up to 1080p at 60 Hz. The module accepts RGB888 24-bit or YCbCr 4:4:4 video, with I²C control.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| HDMI transmitter | SiI9134 |
| HDMI standard | HDMI 1.4 |
| Maximum display resolution | 1080p at 60 Hz |
| Video input formats | RGB888 24-bit; YCbCr 4:4:4 |
| Control interface | I²C |
| Operating temperature | 0°C to 70°C |
| Module interface | 40-pin socket, 2.54 mm pitch |
| Module dimensions | 0.79 × 0.79 in |
3) Tech Support/Dokuments
Web available technical information usually covers HDMI output capability, supported video formats, control interface, and module connections. There are the following technical resources: product technical information.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
A compatible FPGA development board with a 40-pin module interface is needed to use the AN9134.
