Description and Technical Data:
1) Overview/Key Features

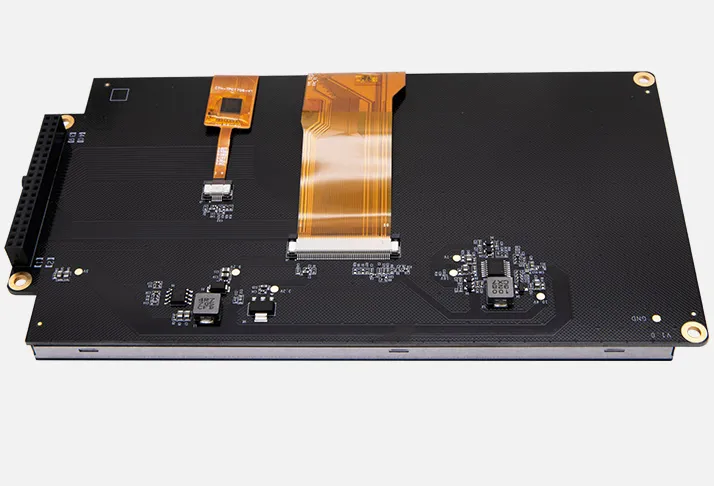

The AN970 is a 7-inch TFT LCD touchscreen expansion module with a 5-point capacitive touch panel. It offers an 800 × 480 resolution and 16.7 million colors, and connects to a compatible FPGA development board through a 40-pin header.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Display size | 7.0 in diagonal |
| Resolution | 800 × 480 RGB |
| Color depth | 16.7 million colors |
| Display interface | 24-bit RGB with TCON |
| Touch panel | 5-point capacitive |
| Touch controller | GOODIX GT911 |
| LCD model | TM070RDH13 |
| Aspect ratio | 16:9 |
| Active area | 154.08 × 85.92 mm |
| Module interface | 40-pin, 2.54 mm-pitch socket |
| Power input | 5 V |
| Power consumption | 1.8 W |
| Operating temperature | −20°C to +70°C (LCD) |
| Module dimensions | 183 × 100.2 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the display, touch panel, module interface, dimensions, and power requirements. There are the following technical resources: an AN970 user manual.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The product information mentions the AN430 4.3-inch TFT LCD module and the AN7000 automotive-grade 7-inch TFT LCD module as related display modules.
5) Downloads/Links
6) What is in the package
1 x product
