Description and Technical Data:
1) Overview/Key Features

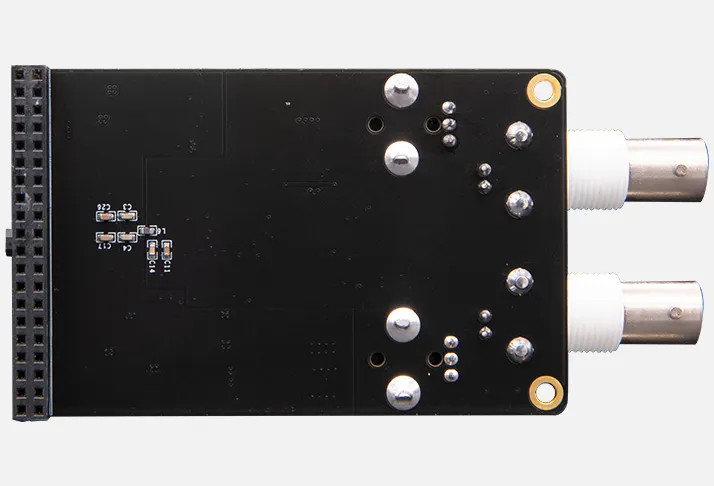

The AN9767 is a dual-channel digital-to-analog converter (DAC) module designed for FPGA development and waveform output applications. It uses a 14-bit DAC with a sampling rate of up to 125 MSPS and provides 2 BNC analog output connectors for direct connection to test equipment such as an oscilloscope. The stated output range is −5 V to +5 V.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Converter type | Digital-to-analog converter (DAC) |
| Resolution | 14 bits |
| Number of channels | 2 |
| Sampling rate | Up to 125 MSPS |
| Output range | −5 V to +5 V |
| Analog output connectors | 2 × BNC |
| Module interface | 40-pin, 2.54 mm pitch socket |
| Operating temperature | −40 °C to 85 °C |
| PCB construction | 4 layers, with independent power and ground layers |
| Module dimensions | 3.19 × 2.01 in |
3) Tech Support/Dokuments
Web available technical information usually covers the module’s DAC channels, resolution, sampling rate, output range, connectors, and interface. There are the following technical resources: product specifications and a user manual. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
No related add-on products were identified on the product page.
5) Downloads/Links
No functioning documentation download links could be confirmed.
6) What is in the package
1 x product
