Description and Technical Data:
1) Overview/Key Features

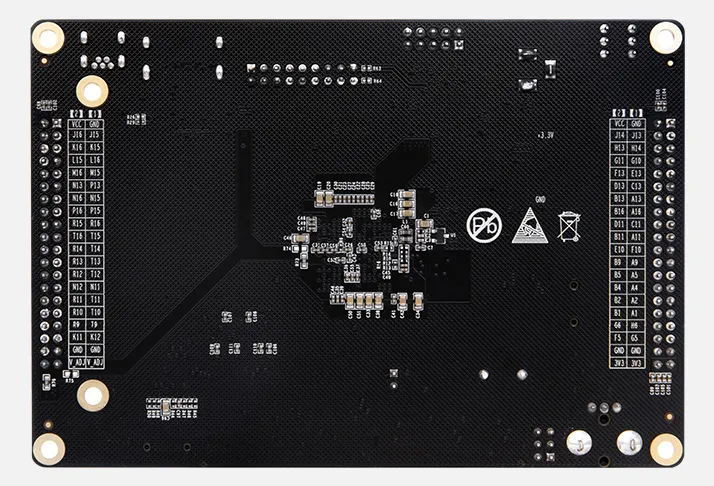

The PGL12G is a Logos-series FPGA development board built around the PGL12G-6CFBG256. It combines programmable logic with SDRAM and QSPI flash, and provides 4 Gigabit Ethernet ports, HDMI and VGA outputs, a Camera Link interface, a MicroSD slot, and a USB-to-UART interface. Two 40-pin expansion ports support compatible modules, including camera, TFT display, and high-speed AD modules. The board uses a single 5 V supply and measures 130 × 90 mm.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA | PGL12G-6CFBG256 |
| SDRAM | 32 MB |
| QSPI flash | 8 MB |
| Gigabit Ethernet | 4 ports |
| Video outputs | 1 × HDMI; 1 × VGA |
| Camera interface | 1 × Camera Link |
| Memory-card slot | 1 × MicroSD |
| Serial interface | 1 × USB-to-UART |
| Expansion ports | 2 × 40-pin; 34 I/Os per port |
| Power input | 5 V |
| Dimensions | 130 × 90 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the FPGA, memory, communication and video interfaces, expansion ports, and power input. There are the following technical resources confirmed on the manufacturer’s product page: none could be verified. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
Compatible add-on modules include binocular cameras, TFT LCD screens, and high-speed AD modules.
5) Downloads/Links
No functioning download links under the product’s Documentation section could be verified.
6) What is in the package
• 1 x product
