Description and Technical Data:
1) Overview/Key Features

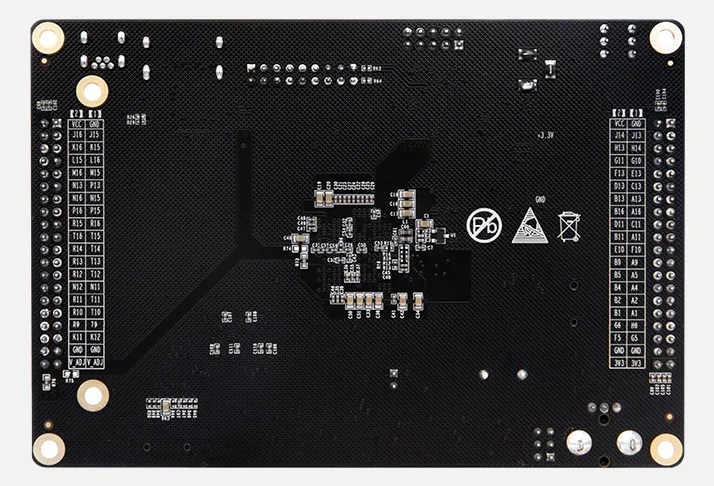

The PGL12G is a Pango Logos-based FPGA development board featuring a PGL12G-6CFBG256 device. It provides 4 Gigabit Ethernet ports, HDMI and VGA outputs, a Camera Link interface, a MicroSD slot, and 2 expansion ports for compatible modules. A USB-to-UART interface supports serial communication, and the board uses a single 5 V supply.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA | PGL12G-6CFBG256 |
| Gigabit Ethernet | 4 ports |
| Video output | 1 × HDMI; 1 × VGA |
| Camera interface | 1 × Camera Link |
| Memory-card slot | 1 × MicroSD |
| Serial interface | 1 × USB-to-UART |
| Expansion ports | 2 × 40-pin, 2.54 mm pitch; 34 I/Os per port |
| Power input | 5 V |
| Dimensions | 130 × 90 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the FPGA device, Ethernet and video interfaces, expansion ports, and power input. There are the following technical resources confirmed on the manufacturer’s product page: none could be verified. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
Compatible expansion modules mentioned for the board include binocular cameras, TFT LCD screens, and high-speed AD modules.
5) Downloads/Links
No functioning download links under the product’s Documentation section could be verified.
6) What is in the package
The package contains.
• 1 x development board
• 1 x USB downloader cable
• 1 x Mini USB cable
• 1 x USB-to-power cable
