Description and Technical Data:
1) Overview/Key Features

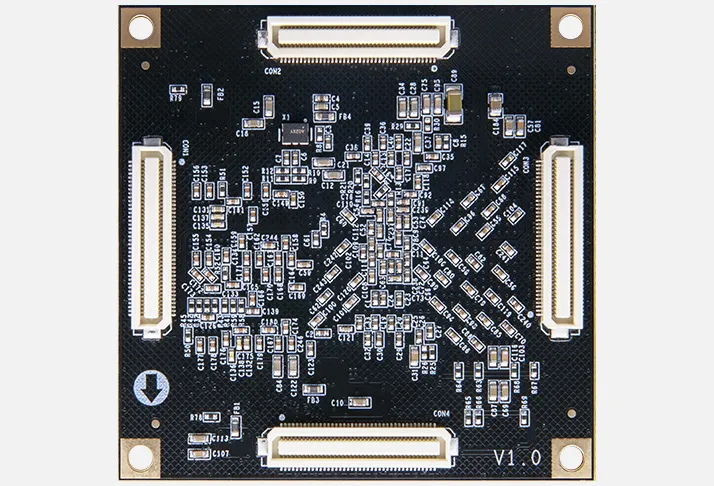

The P100 is a pluggable System-on-Module built around the Pango Logos2 PG2L100H-6IFBG676 FPGA. It combines 1 GB of DDR3 SDRAM and 32 MB of QSPI flash, with 8 high-speed serial transceivers rated up to 6.6 Gbps per lane. The module is suited to high-speed applications, including communications and industrial control.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA | PG2L100H-6IFBG676 |
| DDR3 SDRAM | 1 GB, 32-bit |
| QSPI flash | 32 MB |
| High-speed transceivers | 8 HSSTLP lanes, up to 6.6 Gbps per lane |
| FPGA I/O | 190 signals |
| Board-to-board connectors | 4 × Panasonic connectors |
| Supply voltage | 5 V, single supply |
| Operating temperature | −40°C to 85°C |
| Dimensions | 60 × 60 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the module’s FPGA, memory, transceivers, I/O, connectors, and operating conditions. There are the following technical resources: product documentation, demos, and tutorials.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The product information mentions the AXP100B Logos development board, which uses the P100 module, and AXK680337YG 80-pin board-to-board connectors for designing a baseboard.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 × Pango Logos2 PG2L100H System-on-Module (SoM)
