Description and Technical Data:
1) Overview/Key Features

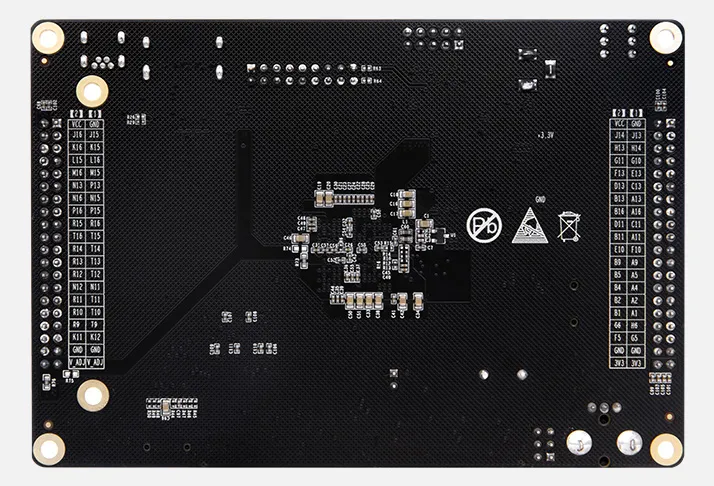

The P22 System-on-Module combines a Pango Logos PGL22G-6CMBG324 FPGA with DDR3 SDRAM and dual parallel Quad-SPI flash to form an embedded processing system. Its pluggable design uses 2 Panasonic board-to-board connectors and provides 114 FPGA I/Os. The module is suited to applications such as communications, image and video processing, medical care, and industrial control.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA | PGL22G-6CMBG324 |
| FPGA fabric process | 40 nm |
| DDR3 SDRAM | 256 MB, 16-bit |
| QSPI flash | 16 MB, dual parallel |
| FPGA I/O | 114 signals, 3.3 V |
| Board-to-board connectors | 2 × Panasonic connectors |
| Supply voltage | 5 V, single supply |
| Operating temperature | 0°C to 70°C |
| Dimensions | 55 × 45 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the module’s FPGA, memory, flash, I/O, connectors, and operating conditions. There are the following technical resources: product documentation, demos, and tutorials.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
For designing a baseboard, the product information specifies AXK680337YG 80-pin board-to-board connectors. Logos development boards using the PGL22G module are also mentioned for getting started with development.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 × Pango Logos PGL22G System-on-Module (SoM)
