Description and Technical Data:
1) Overview/Key Features

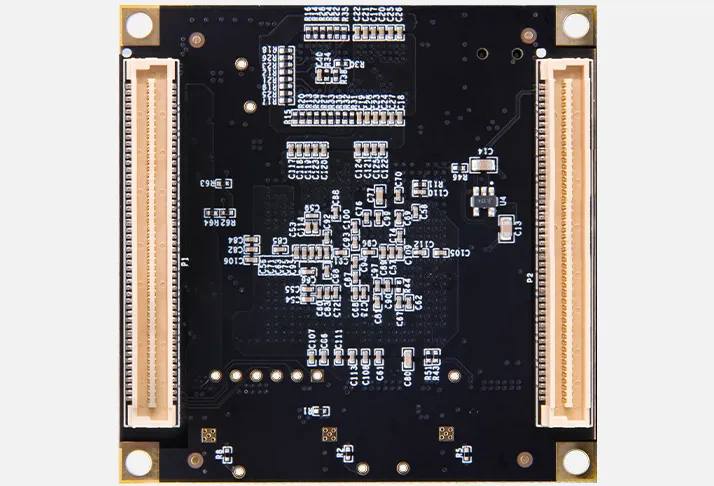

The P50G is a Logos-series FPGA system-on-module based on the PGL50G-6IFBG484. It combines programmable logic with 256 MB of DDR3 SDRAM and 16 MB of QSPI flash. The module provides 172 FPGA I/Os and 4 board-to-board connectors, and is designed for applications requiring high-speed transceivers. fpgapro.com
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA | PGL50G-6IFBG484 |
| DDR3 SDRAM | 256 MB, 16-bit |
| QSPI flash | 16 MB |
| FPGA I/Os | 172, 3.3 V |
| Board-to-board connectors | 4 |
| Supply voltage | 5 V |
| Operating temperature | -40°C to +85°C |
| Dimensions | 60 × 60 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the FPGA device, memory, I/O, connectors, power, and operating temperature. There are the following technical resources confirmed on the product page: none could be verified. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
No compatible add-on products could be confirmed on the product page.
5) Downloads/Links
No functioning download links under the product’s Documentation section could be verified.
6) What is in the package
The package contains.
• 1 x P50G system-on-module
