Description and Technical Data:
1) Overview/Key Features

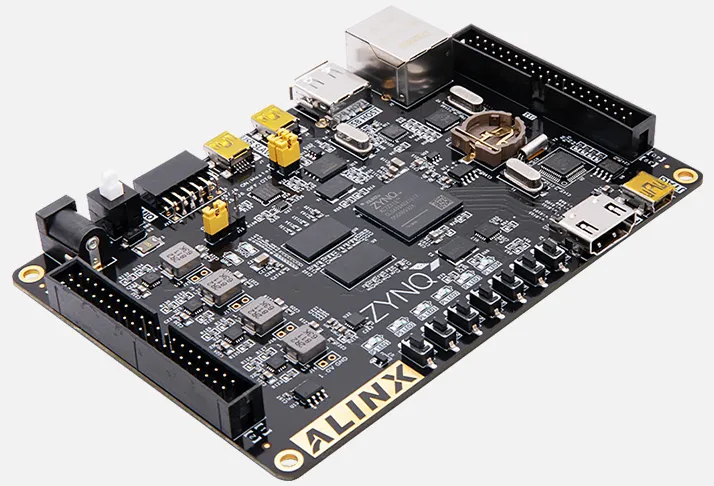

The AX7020 is a Zynq™-7000 SoC development board built around the XC7Z020-2CLG400I device. It combines a dual-core Arm® Cortex®-A9 processing system with programmable logic, providing a flexible platform for embedded Linux, FPGA, control, communication, image processing, industrial automation, and education applications.
- Dual-core Arm Cortex-A9 processor with programmable FPGA logic
- 1 GB DDR3 SDRAM connected to the processing system
- 32 MB QSPI Flash for boot files and user data
- 10/100/1000 Mbps Gigabit Ethernet interface
- HDMI input/output interface supporting video transmission up to 1080p
- USB 2.0 Host and USB 2.0 OTG interfaces
- USB-to-UART interface for serial communication
- Integrated USB JTAG programming and debugging interface
- MicroSD card interface
- 2 x 40-pin expansion interfaces for compatible modules
- 12-pin PS-side expansion interface
- 6 user LEDs and 7 user buttons, including reset and PS/PL controls
- Real-time clock with CR1220 battery holder
- 24LC04 I²C EEPROM
- 33.333 MHz PS oscillator and 50 MHz PL oscillator
- 5 VDC power input with protection up to 2 A
- Board dimensions: approximately 130 mm × 90 mm
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| SoC device | XC7Z020-2CLG400I Zynq-7000 SoC |
| Processor | Dual-core Arm Cortex-A9 MPCore, up to 767 MHz |
| Programmable logic | 85K logic cells, 4.9 Mbit block RAM, 220 DSP slices |
| DDR3 SDRAM | 1 GB, 32-bit data interface |
| QSPI Flash | 32 MB |
| Ethernet | 1 x 10/100/1000 Mbps RJ-45 interface |
| HDMI | 1 x HDMI image/video input or output interface; up to 1080p transmission |
| USB Host | 1 x USB 2.0 Host interface |
| USB OTG | 1 x USB 2.0 OTG interface |
| USB-UART | 1 x USB serial communication interface |
| JTAG | Integrated USB JTAG programming and debugging interface |
| MicroSD | 1 x MicroSD card holder |
| PS expansion | 1 x 12-pin, 2.54 mm pitch expansion interface |
| PL expansion | 2 x 40-pin, 2.54 mm pitch expansion interfaces |
| User indicators | 6 LEDs: 2 PS-controlled and 4 PL-controlled |
| User controls | 7 buttons: 1 CPU reset, 2 PS-controlled, and 4 PL-controlled |
| EEPROM | 24LC04 I²C EEPROM |
| RTC | Real-time clock with CR1220 battery holder |
| Clock sources | 33.333 MHz PS oscillator and 50 MHz PL oscillator |
| Power input | 5 VDC; maximum 2 A protected input |
| Board size | Approximately 130 mm × 90 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the board architecture, component functions, interface connections, power supply, clock configuration, Zynq processor-system peripherals, programmable-logic peripherals, JTAG, QSPI Flash, DDR3, Ethernet, USB, UART, MicroSD, HDMI, EEPROM, RTC, LEDs, buttons, and expansion connectors.
There are the following technical resources:
- AX7020 user manual
- AX7020 hardware documentation
- AX7020 factory demonstration project
- Vivado project sources and TCL project-generation files
- Reference designs and tutorials for board peripherals
The development examples use the Vivado 2023.1 design environment and include support for common AX7020 peripherals.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The available compatible add-on products mentioned for the expansion interfaces include:
- Camera modules
- TFT LCD display modules
- 7-inch TFT modules
- AD/DA converter modules
- High-speed AD modules
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x AX7020 development board
- 1 x TF card
- 2 x Mini USB cables
- 1 x 5 V power adapter
- 1 x card reader
- 1 x acrylic plate
