Description and Technical Data:
1) Overview/Key Features

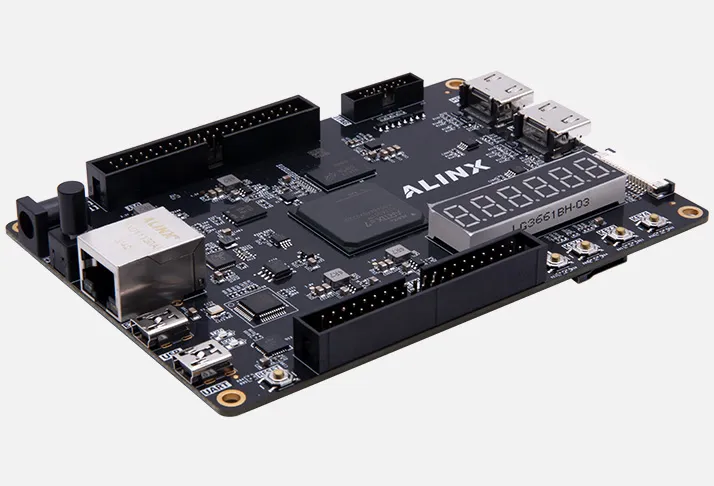

The AX7035B FPGA development board is an evaluation and prototyping platform based on the AMD Artix 7 XC7A35T FPGA. It combines DDR3 SDRAM, QSPI Flash, Gigabit Ethernet, HDMI video interfaces, USB, MicroSD storage, expansion connectors, temperature monitoring, and user-interface peripherals in a compact 130 x 90 mm board.
- Artix 7 XC7A35T-2FGG484I FPGA.
- 28 nm FPGA architecture optimized for power, performance, and cost efficiency.
- 256 MB 32-bit DDR3 SDRAM.
- 16 MB QSPI Flash.
- 1 x Gigabit Ethernet interface.
- 2 x HDMI interfaces: 1 x HDMI input and 1 x HDMI output.
- 1 x USB 2.0 interface.
- 1 x MicroSD card interface.
- 1 x 512-byte 24LC04 EEPROM.
- 1 x LM75 temperature sensor.
- 2 x 40-pin expansion ports with 34 FPGA I/O connections each.
- Compatible with binocular camera, TFT LCD, and high-speed analog-to-digital expansion modules.
- 1 x USB-to-UART interface.
- 1 x six-in-one digital tube display.
- 1 x power LED, 1 x RXD LED, 1 x TXD LED, and 4 x user LEDs.
- 2 x user keys.
- 5 V single-supply operation.
- Suitable for communication, image and video processing, data analysis, medical, industrial control, and network information security applications.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | XC7A35T-2FGG484I |
| FPGA family | Artix 7 |
| FPGA package | FGG484 |
| FPGA speed grade | -2 |
| FPGA process technology | 28 nm |
| DDR3 SDRAM | 256 MB, 32-bit |
| QSPI Flash | 16 MB |
| Ethernet | 1 x Gigabit Ethernet |
| HDMI | 2 x HDMI; 1 x input and 1 x output |
| USB | 1 x USB 2.0 interface |
| Removable storage | 1 x MicroSD card interface |
| EEPROM | 1 x 512-byte 24LC04 |
| Temperature monitoring | 1 x LM75 temperature sensor |
| Expansion interfaces | 2 x 40-pin ports |
| Expansion I/O | 34 FPGA I/O connections per port |
| UART | 1 x USB-to-UART interface |
| Display | 1 x six-in-one digital tube |
| LED indicators | 1 x power LED, 1 x RXD LED, 1 x TXD LED, and 4 x user LEDs |
| Push buttons | 2 x user keys |
| Power input | 5 V single supply |
| Board dimensions | 130 x 90 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the AX7035B product overview, FPGA device, board features, applications, technical specifications, product selection information, documentation, related products, and package contents.
There are the following technical resources:
- AX7035B User Manual dated 2023-05-04.
- AX7035 User Manual dated 2023-04-26.
- Technical information concerning DDR3 SDRAM, QSPI Flash, Gigabit Ethernet, HDMI, USB, MicroSD, EEPROM, temperature monitoring, UART, expansion ports, digital display, LEDs, keys, power, and board dimensions.
- Development demos and tutorials.
- Design-in information for Artix 7-based applications.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
Available related products mentioned for the AX7035B include:
- AC7A035 FPGA SoM with Artix 7 XC7A35T.
- AC7A200 FPGA SoM with Artix 7 XC7A200T.
- AC7100B FPGA SoM with Artix 7 XC7A100T.
- AC7200 FPGA SoM with Artix 7 XC7A200T.
- AX7A200B FPGA Dev Board & Kit with Artix 7 XC7A200T.
- AX7203 FPGA Dev Board & Kit with Artix 7 XC7A200T.
- AX7202 FPGA Dev Board & Kit with Artix 7 XC7A200T.
- AX7201 FPGA Dev Board & Kit with Artix 7 XC7A200T.
- AXAU15 FPGA Dev Board & Kit with Artix UltraScale+ XCAU15P.
- AX7102 FPGA Dev Board & Kit with Artix 7 XC7A100T.
- AXKU5 FPGA Dev Board & Kit with Kintex UltraScale+ XCKU5P.
- AXKU062 FPGA Dev Board & Kit with Kintex UltraScale XCKU060.
- AX7325B FPGA Dev Board & Kit with Kintex 7 XC7K325T.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x Development board.
- 1 x USB downloader cable / set.
- 1 x Mini USB cable.
- 1 x Acrylic board.
- 1 x 5 V power adapter.
