Description and Technical Data:
1) Overview/Key Features

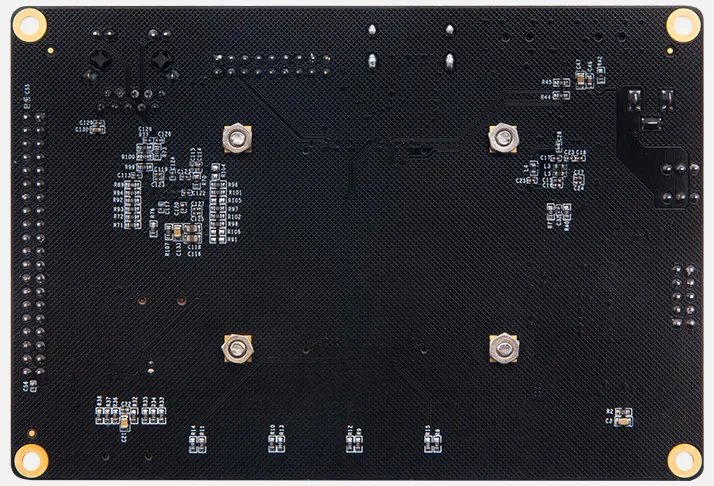

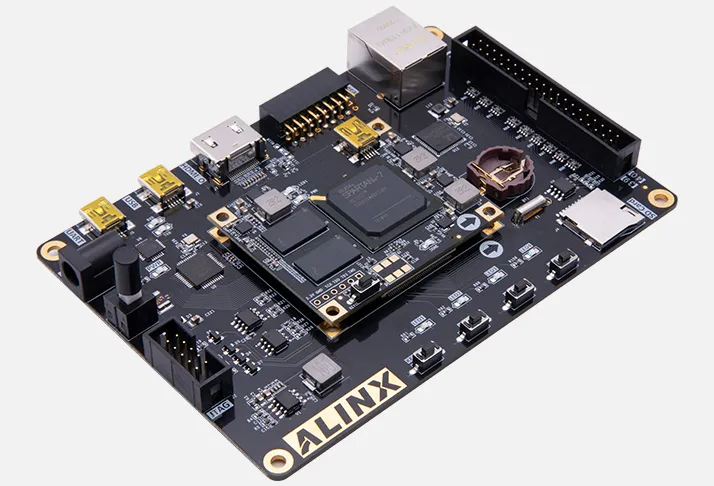

The AX7050 is an FPGA development board featuring an AMD/Xilinx Spartan-7 XC7S50-1FGGA484I. It combines an AC7050B System-on-Module with a base board featuring DDR3 SDRAM, QSPI Flash, HDMI output, and Gigabit Ethernet.
Key features include:
- 1 GB 32-bit DDR3 SDRAM and 16 MB QSPI Flash
- 1 Gigabit Ethernet port and 1 HDMI output
- 1 USB-to-UART interface
- 1 40-pin expansion port with 34 I/Os
- 1 MicroSD slot, 1 RTC, and 1 512-byte EEPROM
- 1 Camera Link interface
- 1 power LED, 1 RXD LED, 1 TXD LED, 4 user LEDs, and 4 keys
- 5 V single supply; 130 × 90 mm board dimensions
Applications include video image acquisition and processing, and network signal transmission.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | Spartan-7 XC7S50-1FGGA484I |
| DDR3 SDRAM | 1 GB, 32-bit |
| QSPI Flash | 16 MB |
| Ethernet | 1 × Gigabit Ethernet |
| HDMI | 1 × HDMI output |
| UART | 1 × USB-to-UART |
| Expansion port | 1 × 40-pin, 2.54 mm spacing; 34 I/Os |
| Removable storage | 1 × MicroSD |
| Real-time clock | 1 × DS1302 |
| EEPROM | 1 × 24LC04, 512 bytes |
| Camera interface | 1 × Camera Link |
| LEDs | 1 × PWR, 1 × RXD, 1 × TXD, 4 × user LEDs |
| Keys | 4 |
| Power supply | 5 V single supply |
| Board dimensions | 130 × 90 mm |
3) Tech Support/Documents
Web available technical information usually covers product specifications, documentation, demos, and tutorials. There are the following resources described for this board: complete documentation, demos, and tutorials. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- AC7050B System-on-Module, available separately.
- Compatible expansion modules include binocular cameras, TFT LCD screens, and high-speed AD modules.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 × Spartan-7 FPGA development board, comprising 1 System-on-Module and 1 base board
- 1 × Mini USB cable
- 1 × Acrylic board
- 1 × 5 V power adapter
- 1 × USB downloader cable/set
