Description and Technical Data:
1) Overview/Key Features

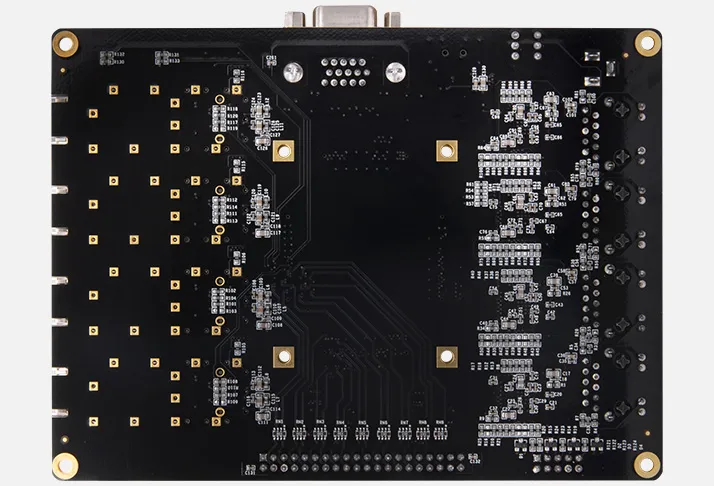

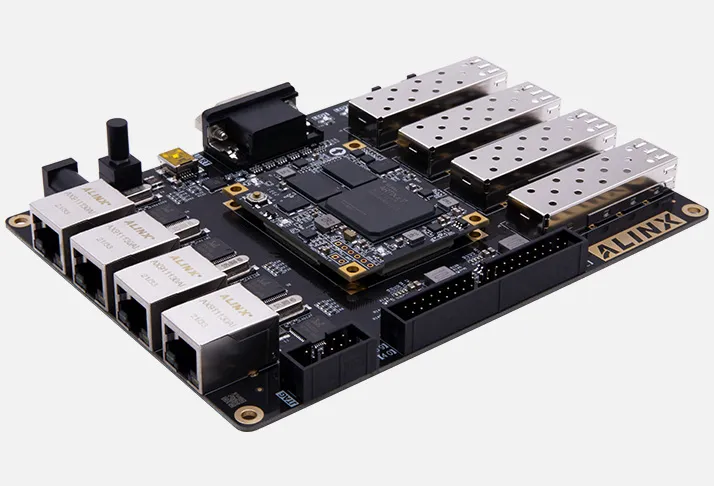

The ALINX AMD/Xilinx Artix-7 XC7A100T FPGA Development Board AX7101 is a development platform consisting of an AC7100B System-on-Module and a base board. It is designed for high-speed SFP+ communication, VGA video applications, FPGA development, embedded processing, industrial control, and hardware prototyping.
The board combines an Artix-7 FPGA with DDR3 SDRAM, QSPI Flash, 4 Gigabit Ethernet interfaces, 4 SFP+ interfaces, VGA output, USB-to-UART connectivity, and a 40-pin expansion port.
Key features include:
- AMD/Xilinx Artix-7 XC7A100T-2FGG484I FPGA
- 28 nm FPGA technology
- High-performance power-per-watt architecture
- Pluggable System-on-Module with 4 Panasonic board-to-board connectors
- 1 GB 32-bit DDR3 SDRAM
- 16 MB QSPI Flash
- 4 Gigabit Ethernet interfaces
- 4 SFP+ interfaces supporting up to 6.6 Gbps per line
- 1 VGA output
- 1 USB-to-UART interface
- 1 40-pin expansion port
- 34 FPGA-connected I/O lines on the expansion port
- 2.54 mm expansion connector spacing
- Compatible with selected expansion modules, including binocular cameras, TFT LCD screens, and high-speed ADC modules
- 1 power LED and 2 user LEDs
- 2 push buttons
- 12 V single power supply
- 150 × 110 mm board dimensions
Typical applications include communication, image and video processing, data analysis, medical equipment development, industrial control, and network information security.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product model | AX7101 |
| Product type | FPGA development board and kit |
| System-on-Module | AC7100B FPGA SoM |
| FPGA device | XC7A100T-2FGG484I |
| FPGA family | Artix-7 |
| Process technology | 28 nm |
| FPGA package | FGG484 |
| FPGA speed grade | -2 |
| Board-to-board connectors | 4 Panasonic connectors |
| DDR3 SDRAM | 1 GB |
| DDR3 data width | 32 bit |
| QSPI Flash | 16 MB |
| GTP transceivers | 4 |
| Gigabit Ethernet | 4 interfaces |
| SFP+ | 4 interfaces |
| SFP+ line speed | Up to 6.6 Gbps per line |
| VGA | 1 output |
| UART | 1 USB-to-UART interface |
| Expansion port | 1 × 40-pin port |
| Expansion connector spacing | 2.54 mm |
| Expansion I/O | 34 FPGA-connected I/O lines |
| LEDs | 1 power LED and 2 user LEDs |
| Push buttons | 2 |
| Power input | 12 V single supply |
| Board dimensions | 150 × 110 mm |
| Main applications | Communication, image and video processing, data analysis, medical equipment development, industrial control, and network information security |
3) Tech Support/Documents
Web available technical information usually covers the AX7101 FPGA development board, the AC7100B System-on-Module, the AMD/Xilinx Artix-7 XC7A100T FPGA, SFP+ high-speed communication, VGA video output, Gigabit Ethernet, DDR3 memory, QSPI Flash, UART communication, and expansion connectivity.
There are the following technical resources available:
- AX7101 User Manual
- Product specifications
- Board feature information
- Artix-7 FPGA development information
- SFP+ communication information
- VGA video application information
- FPGA programming and debugging information
- Development demonstrations and tutorials
- Information for compatible expansion modules
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- AC7100B FPGA SoM with AMD Artix-7 XC7A100T
- AC7200 FPGA SoM with AMD Artix-7 XC7A200T
- AC7A035 FPGA SoM with AMD Artix-7 XC7A35T
- AX7201 FPGA Development Board and Kit with AMD Artix-7 XC7A200T
- AX7101 FPGA Development Board and Kit with AMD Artix-7 XC7A100T
5) Downloads/Links
6) What is in the package
1 x product
