Description and Technical Data:

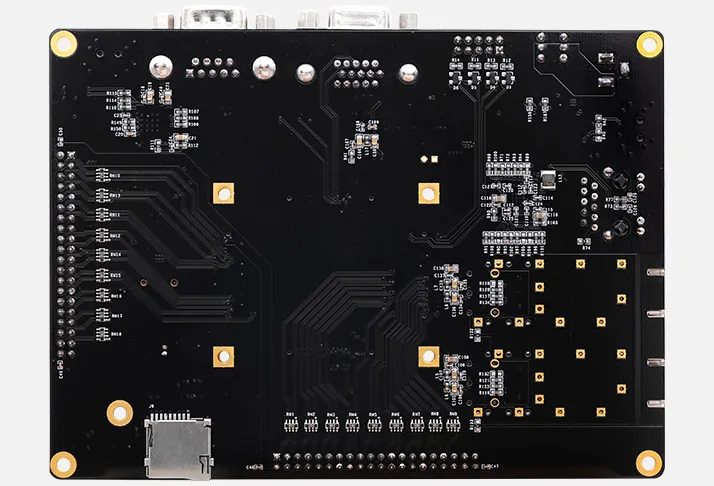

The AX7102 FPGA development board equipped with the AMD Artix 7 series device, delivers standout performance with DDR3 SDRAM, QSPI Flash, Gigabit Ethernet, SFP+, VGA out, RS232.
Product Description
The AX7102/AX7202 FPGA development board equipped with the AMD/Xilinx Artix 7 series device, delivers standout performance with fast DDR3 SDRAM, QSPI Flash, Gigabit Ethernet, SFP+, VGA out, RS232.
Provide high-speed communication (SFP) and video applications (VGA).
Applications
● communication
● Image and video processing
● Data analysis
● medical care
● Industrial control
● Network Information Security
Key Features
System-on-Module
● AMD/Xilinx Artix 7:
◆ A high-performance power-per-watt architecture, transceiver line speed, DSP processing power, and AMS integration are available in a single cost-optimized FPGA
◆ The 28nm node achieves an excellent cost/performance/power balance
● Pluggable module with 4 x Panasonic board-to-board connectors
● 1 GByte (32-bit) DDR3 SDRAM
● 16 MB QSPI FlashBase Board
● 1 x Gigabit Ethernet
● 2 x SFP+ (per line 6.6Gbps)
● 1 x VGA out
● 1 x USB2.0
● 1 x MicroSD
● 1 x UART (USB to UART)
● 1 x RS232
● 1 x 512 Byte EEPROM 24LC04
● 1 x RTC DS1302(Real-time Clock)
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 X LED) KEY (4 x KEY)
● 12V single supply
● Dimensions: 150 x 110 mm form factor
Board Features
Featuring the AMD/Xilinx Artix 7 XC7A100T-2FGG484I
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Artix 7 based application.
* The AX7102 development board consists of a AC7100B SoM and base board. If you want to purchase AC7100B SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX AMD Xilinx Artix 7 XC7A100T FPGA development board and Some accessories
| System-on-Module | 1 | Base Board | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
| 12V Power Adapter | 1 | Acrylic board | 1 |
| Heatsink | 1 |
Product Matrix
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
