Description and Technical Data:
1) Overview/Key Features

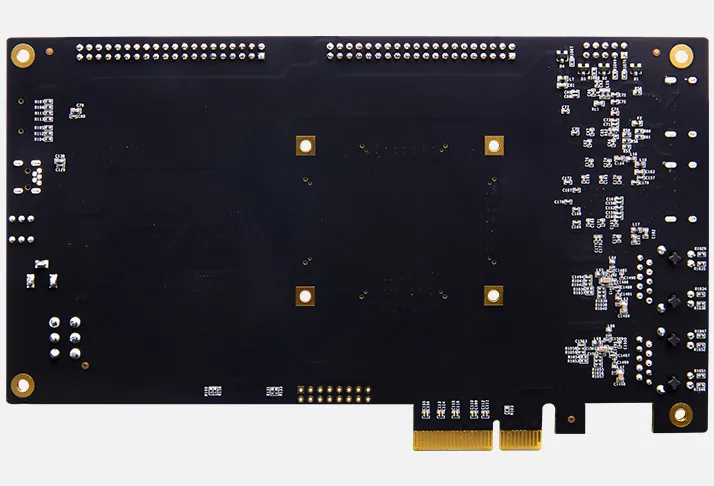

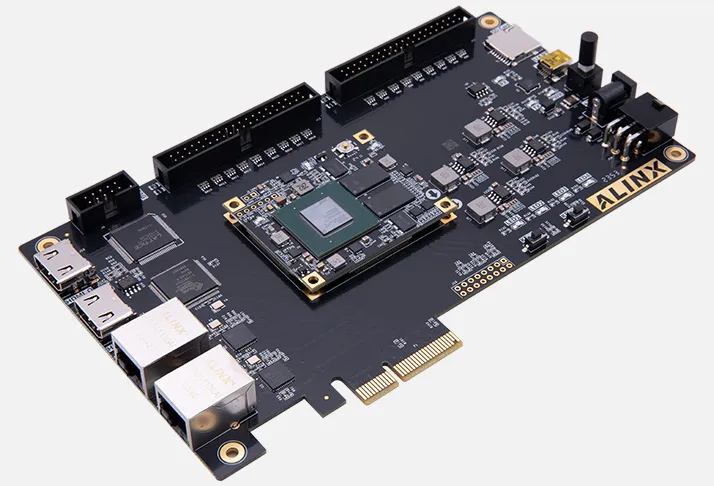

The AX7203 is an FPGA development board based on the AMD/Xilinx Artix 7 XC7A200T-2FBG484I FPGA. It combines a pluggable AC7200 System-on-Module with a feature-rich base board for high-speed PCIe communication, HDMI video processing, industrial control, data analysis, medical equipment, communications, and network information security applications.
The board provides 1 GB DDR3 SDRAM, 16 MB QSPI Flash, PCIe Gen2 connectivity, 2 Gigabit Ethernet ports, HDMI input and output, MicroSD storage, USB-to-UART connectivity, EEPROM, and 2 expansion ports. The board is suitable for high-speed data-transfer, image-processing, video-capture, and display applications.
Key features include:
- AMD/Xilinx Artix 7 XC7A200T-2FBG484I FPGA
- High-performance 28 nm FPGA architecture
- Pluggable AC7200 System-on-Module
- 1 GB DDR3 SDRAM with a 32-bit interface
- 16 MB QSPI Flash
- 1 x PCIe Gen2 ×4 interface
- 2 Gigabit Ethernet ports
- 1 HDMI input and 1 HDMI output
- MicroSD card interface
- USB-to-UART interface
- 512-byte 24LC04 EEPROM
- 2 x 40-pin expansion ports with 34 connected I/O signals per port
- 1 power LED, 1 RXD LED, 1 TXD LED, and 4 user LEDs
- 2 user keys
- 12 V single-supply operation
- 188 × 111 mm board dimensions
The expansion ports use 2.54 mm spacing and can be connected to compatible modules such as binocular camera modules, TFT LCD displays, and high-speed analog-to-digital converter modules.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product model | AX7203 |
| FPGA device | XC7A200T-2FBG484I |
| FPGA family | Artix 7 |
| System-on-Module | AC7200 |
| DDR3 SDRAM | 1 GB, 32-bit interface |
| QSPI Flash | 16 MB |
| PCI Express | 1 x PCIe Gen2 ×4 interface |
| Gigabit Ethernet | 2 ports |
| HDMI interfaces | 2 total: 1 HDMI input and 1 HDMI output |
| UART interface | 1 USB-to-UART interface |
| Removable storage | 1 MicroSD card interface |
| EEPROM | 1 x 24LC04, 512 bytes |
| Expansion interfaces | 2 x 40-pin connectors |
| Expansion connector pitch | 2.54 mm |
| Expansion I/O | 34 connected I/O signals per connector |
| LED indicators | 1 power LED, 1 RXD LED, 1 TXD LED, and 4 user LEDs |
| User controls | 2 push-button keys |
| Power input | 12 V single supply |
| Board dimensions | 188 × 111 mm |
3) Tech Support/Documents
Web available technical information usually covers the AX7203 board architecture, AC7200 System-on-Module, FPGA resources, DDR3 and QSPI memory, PCIe Gen2 connectivity, Gigabit Ethernet, HDMI input and output, MicroSD storage, UART communication, EEPROM, expansion-port signals, power requirements, and board dimensions.
There are the following development resources available:
- Board documentation
- Hardware reference information
- FPGA example designs
- PCIe demonstration projects
- HDMI video demonstration projects
- Development tutorials
- Interface documentation
- Programming and configuration guidance
- Ethernet and MicroSD interface information
- Expansion-module integration information
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- AC7200 Artix 7 System-on-Module
- Compatible binocular camera modules
- Compatible TFT LCD modules
- Compatible high-speed analog-to-digital converter modules
5) Downloads/Links
- No functioning download links were provided in the supplied product information.
6) What is in the package
The package contains.
- 1 x AC7200 System-on-Module
- 1 x Base board
- 1 x Mini USB cable
- 1 x USB downloader cable/set
- 1 x 12 V power adapter
- 1 x PCIe fence
- 1 x Heatsink
