Description and Technical Data:
1) Overview/Key Features

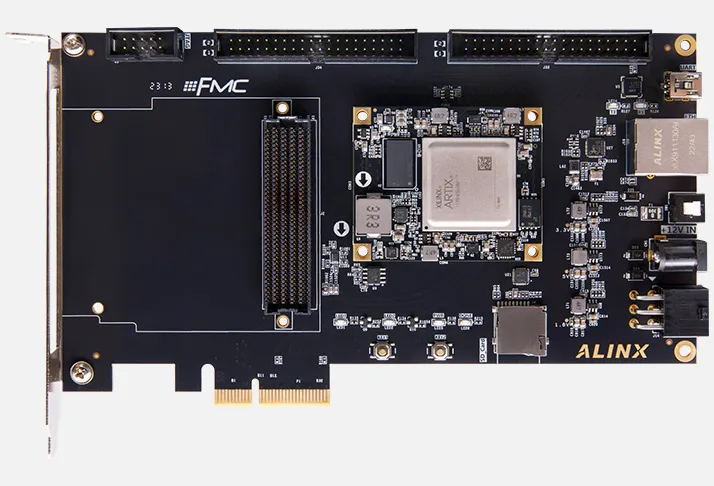

The ALINX AXAU15 V2.0 is an FPGA development board and design-in kit based on the AMD Artix™ UltraScale+™ XCAU15P-2FFVB676I device. It combines the ACAU15 FPGA System-on-Module with a carrier board, providing DDR4 memory, QSPI Flash, PCIe Gen4, FMC HPC connectivity, Gigabit Ethernet, expansion interfaces, and USB-to-UART communication. The board is suitable for industrial machine vision, industrial networking, medical imaging, video processing, high-speed communications, aerospace and defense applications.
Key features include:
- AMD Artix UltraScale+ FPGA using 16 nm FinFET technology
- Advanced FPGA DSP architecture for fixed-point and floating-point processing
- 1 GB 16-bit DDR4 SDRAM
- 32 MB QSPI Flash
- One FMC HPC connector with 37 LVDS I/O pairs and 8 GTH pairs
- PCIe Gen4 ×4 interface
- Gigabit Ethernet
- Two 40-pin expansion ports with 34 I/Os connected to ALINX modules
- MicroSD interface
- USB-to-UART interface
- 512-byte 24LC04 EEPROM
- LM75 temperature sensor
- 12 V single-supply operation
- 188 × 106 mm board form factor

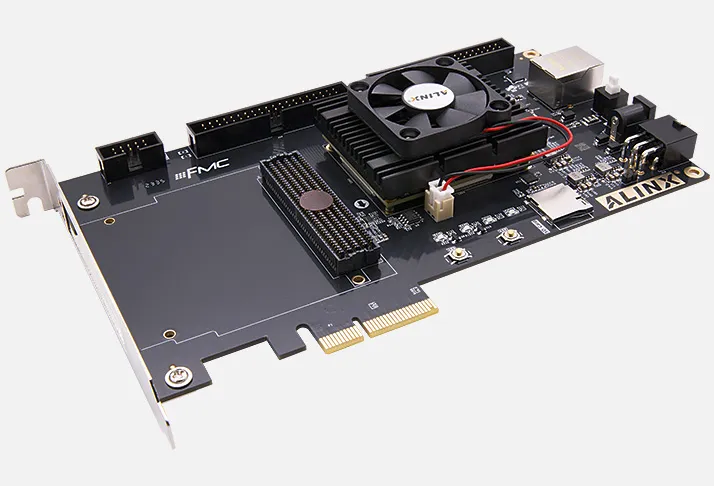

- Preinstalled heatsink kit
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product model | AXAU15 V2.0 |
| FPGA device | AMD/Xilinx Artix UltraScale + XCAU15P-2FFVB676I |
| FPGA technology | 16 nm FinFET |
| FPGA package/speed grade | 2FFVB676I |
| System-on-Module | ACAU15 Artix UltraScale+ FPGA SoM |
| DDR4 SDRAM | 1 GB, 16-bit |
| QSPI Flash | 32 MB |
| High-speed transceivers | 12 × GTH |
| FMC interface | 1 × FMC HPC |
| FMC connectivity | 37 LVDS I/O pairs and 8 GTH pairs |
| PCIe interface | 1 × PCIe Gen4 ×4 |
| Ethernet | 1 × Gigabit Ethernet |
| UART | 1 × USB-to-UART |
| Expansion interfaces | 2 × 40-pin ports, 34 I/Os |
| Storage interface | 1 × MicroSD |
| EEPROM | 512-byte 24LC04 |
| Temperature sensor | LM75 |
| User indicators | Power, DONE, RXD, TXD and two user LEDs |
| User keys | 2 |
| Power input | 12 V single supply |
| Board dimensions | 188 × 106 mm |
| Cooling | FAN6050 heatsink kit, preinstalled |
3) Tech Support/Dokuments
Web available technical information usually covers the AXAU15 V2.0 product description, FPGA device information, key features, interface details, product-selection matrix, applications, package contents, user manuals, demonstrations and tutorials. Documentation includes the AXAU15 V2.0 User Manual or the AXAU15 V1.0 User Manual. Additional project-specific hardware, firmware, software, FPGA/SoC system design, prototyping and production support are available through Mirifica Industrial.
4) Related Product Suggestion
Available manufacturer-listed related products include:
- ACAU15 FPGA SoM with AMD Artix™ UltraScale+ XCAU15P
- FL9781 14-bit 500MSPS AD9781 output module LPC FMC Card
- FL9031 4-channel Gigabit Ethernet LPC FMC Card
- FL2971 3G-SDI 1080P video input/output LPC FMC Card
- FL9627 4-channel 12-bit 125M LVDS AD9627 LPC FMC Card
- FL2514 14-bit 250MSPS AD input analog-to-digital LPC FMC Card
- FL6000 12-bit ADC AD9361 Communication RF FMC LPC Card
- FL9613 4-channel 12-bit 250M AD9613 Acquisition LPC FMC Card
5) Downloads/Links
6) What is in the package
The package contains.
- 1 × System-on-Module
- 1 × Base board
- 1 × Mini USB cable
- 1 × USB downloader cable/set
- 1 × 12 V power adapter
- 1 × PCIe fence
- 1 × Preinstalled heatsink kit
