Description and Technical Data:

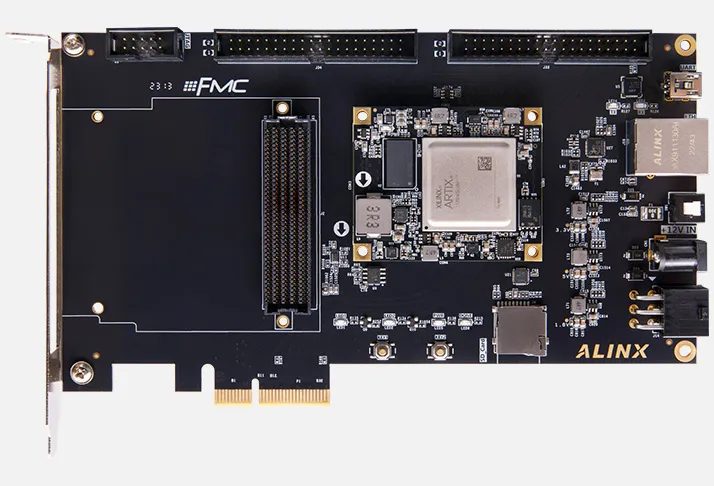

The AXAU15 FPGA development board equipped with the AMD Artix™ UltraScale+™ series device, delivers standout performance with DDR4 SDRAM, QSPI Flash, PCIe, FMC HPC, Gigabit Ethernet.
Product Description
The AXAU15 FPGA development board equipped with the AMD/Xilinx Artix UltraScale+™ series device, delivers standout performance with fast DDR4 SDRAM, QSPI Flash, PCIe, FMC HPC, Gigabit Ethernet.
Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe).
Applications
Industrial
● Machine Vision
● Industrial Networking
● Industrial Controllers
Medical
● Portable and Desktop Ultrasound
● Surgical Vision
● Endoscopy
Networking
● Nx10 G and 25 G Networking
● Nx100 G Systems
AV Broadcasting
● LED Video Walls
● Digital Signage
● KVM Switch
● 4K Video Converters
Aerospace & Defense
● MILCOM Radio
● Missiles & Munitions
Key Features
System-on-Module
● AMD/Xilinx Artix Ultrascale+™:
◆ 16nm FinFET FPGA fabric
◆ Advanced FPGA DSP architecture, optimized for fixed-point and floating-point calculations
● Pluggable module with 4 x Panasonic board-to-board connectors
● 1 GByte (16-bit) DDR4 SDRAM
● 32 MB QSPI FlashBase Board
● 1 x FMC HPC (37 pairs lvds ios + 8 pairs GTH)
● 1 x PCIe® Gen4 ×4
● 1 x Gigabit Ethernet
● 1 x UART(USB to UART)
● 2 x 40-pin Expansion Port (with 34 IOs, connected to ALINX modules)
● 1 x MicroSD
● 1 x 512 Byte EEPROM 24LC04
● 1 x Temperature sensor LM75
● LED (1 x PWR + 1 x DONE + 1 x RXD + 1 x TXD + 2 x LED)
● KEY (2 x KEY)
● 12V single supply
● Dimensions: 188 x 106 mm form factor
Board Features
Featuring the AMD/Xilinx Artix Ultrascale+™ XCAU15P-2FFVB676I
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Artix Ultrascale+™ based application.
* The AXAU15 development board consists of a ACAU15 SoM and base board. If you want to purchase ACAU15 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX AMD Xilinx Artix Ultrascale+™ XCAU15P FPGA development board and Some accessories
The FAN6050 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCAU15P device surface.
| System-on-Module | 1 | Base Board | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
| 12V Power Adapter | 1 | PCle Fence | 1 |
| Heatsink Kit (preinstalled) | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR4 SDRAM | QSPI Flash | GTH | GTY | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXAU15 | √ | XCAU15P-2FFVB676I | 1 GB | 32 MB | 12 | 689 | ||||||||
| AXAU25 | √ | XCAU25P-2FFVB676I | 1 GB | 32 MB | 12 | 824 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
More Details:
FPGA Dev Boards
