Description and Technical Data:
1) Overview/Key Features

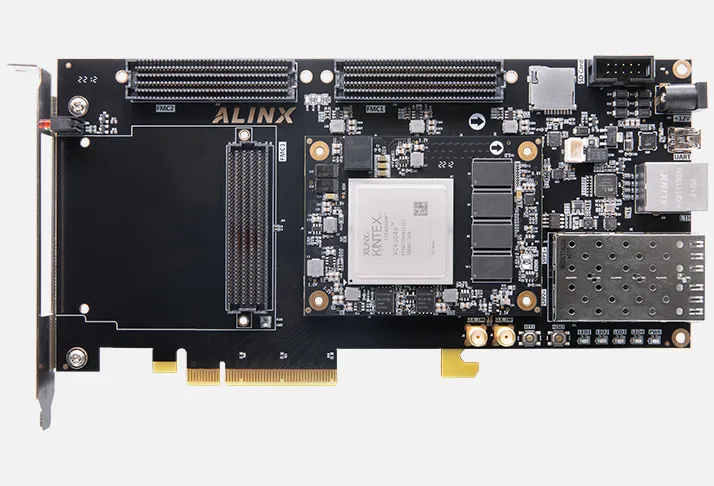

The ALINX AXKU042 is a high-performance FPGA development and evaluation platform based on the Kintex UltraScale XCKU040 FPGA. It consists of an ACKU040 system-on-module and a feature-rich base board, providing DDR4 memory, QSPI Flash, PCIe Gen3, SFP+ connectivity, FMC expansion, Gigabit Ethernet, and multiple control and debug interfaces. The board is suitable for data-center acceleration, network and storage acceleration, medical imaging, machine vision, wired and wireless communications, radio, optical transport, and baseband processing.
- Kintex UltraScale XCKU040 FPGA
- Pluggable ACKU040 system-on-module with 6 x Panasonic board-to-board connectors
- 4 GB 64-bit DDR4 SDRAM
- 2 x 16 MB QSPI Flash devices
- 1 x PCIe Gen3 x8 interface
- 2 x SFP+ interfaces supporting up to 12.5 Gbps per line
- 2 x FMC LPC interfaces and 1 x FMC HPC interface
- 1 x Gigabit Ethernet interface
- 1 x USB-to-UART interface
- 1 x MicroSD card interface
- 1 x 512-byte EEPROM
- 1 x LM75A temperature sensor
- 1 x power LED and 4 x user LEDs
- 1 x reset button and 2 x user buttons
- 12 V single-supply operation
- 210 x 106 mm board form factor
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | Kintex UltraScale XCKU040-2FFVA1156I |
| FPGA architecture | Kintex UltraScale series with 3D IC technology |
| DSP compute performance | Up to 8.2 TeraMAC |
| System-on-module | ACKU040 module with 6 x Panasonic board-to-board connectors |
| DDR4 SDRAM | 4 GB, 64-bit |
| QSPI Flash | 2 x 16 MB |
| PCI Express | 1 x PCIe Gen3 x8 |
| SFP+ | 2 x SFP+, up to 12.5 Gbps per line |
| FMC expansion | 2 x FMC LPC interfaces with 36 LVDS I/O pairs each, plus 1 x FMC HPC interface with 58 LVDS I/O pairs and 8 GTH pairs |
| Gigabit Ethernet | 1 x Gigabit Ethernet interface |
| UART | 1 x USB-to-UART interface |
| Storage | 1 x MicroSD card interface |
| EEPROM | 1 x 512-byte 24LC04 EEPROM |
| Temperature sensor | 1 x LM75A |
| LED indicators | 1 x power LED and 4 x user LEDs |
| User controls | 1 x reset button and 2 x user buttons |
| Power input | 12 V DC single supply |
| Board dimensions | 210 x 106 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the AXKU042 system-on-module and base-board architecture, the XCKU040 FPGA, DDR4 and QSPI memory, PCIe Gen3, SFP+ connectivity, FMC LPC and FMC HPC expansion, Gigabit Ethernet, UART, MicroSD, EEPROM, temperature monitoring, power requirements, and supported FPGA development applications.
There are the following technical resources available:
- AXKU042 V2.0 User Manual
- AXKU042 V3.0 User Manual
- AXKU042 product information
- Product Selection Matrix
- Hardware interface and connector information
- Development demos and tutorials
- Application information for data-center acceleration, machine vision, communications, radio, optical transport, and baseband processing
Contact Mirifica Industrial for further detailed information for your project.
