Description and Technical Data:
1) Overview/Key Features

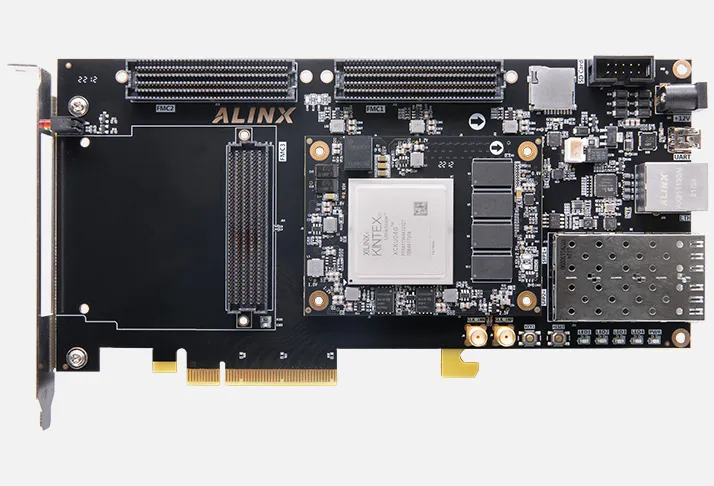

The AXKU062 FPGA development board is a high-performance evaluation and prototyping platform based on the AMD Kintex UltraScale XCKU060 FPGA. The board consists of an ACKU060 system-on-module and a carrier board, combining high-speed memory, programmable logic, high-speed serial connectivity, FMC expansion, PCIe, Ethernet, and SFP+ interfaces.
- Kintex UltraScale XCKU060-2FFVA1156I FPGA.
- Up to 1.5 million system logic units.
- Up to 8.2 TeraMAC DSP computing performance.
- 4 GB 64-bit DDR4 SDRAM.
- 2 x 16 MB QSPI Flash devices.
- 2 x FMC LPC interfaces and 1 x FMC HPC interface.
- 1 x PCIe Gen3 x8 interface.
- 2 x SFP+ interfaces supporting up to 12.5 Gbps per line.
- 1 x Gigabit Ethernet interface.
- USB-to-UART interface.
- MicroSD card interface.
- 512-byte 24LC04 EEPROM.
- LM75A temperature sensor.
- 12 V single-supply operation.
- 210 x 106 mm board form factor.
- Compatible with FMC expansion cards for data acquisition, motor control, display, camera interfaces, and software-defined radio.
- Suitable for data-center acceleration, storage acceleration, medical imaging, machine vision, wired communications, optical transport, radio, and baseband applications.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | XCKU060-2FFVA1156I |
| FPGA family | Kintex UltraScale |
| FPGA package | FFVA1156 |
| FPGA speed grade | -2 |
| System logic capacity | Up to 1.5 million system logic units |
| DSP performance | Up to 8.2 TeraMAC |
| DDR4 SDRAM | 4 GB, 64-bit |
| QSPI Flash | 2 x 16 MB; 32 MB total |
| FMC interfaces | 2 x FMC LPC and 1 x FMC HPC |
| FMC LPC I/O | 36 LVDS pairs per interface |
| FMC HPC I/O | 58 LVDS pairs and 8 GTH interfaces |
| PCI Express | 1 x PCIe Gen3 x8 |
| SFP+ | 2 x SFP+, up to 12.5 Gbps per line |
| Ethernet | 1 x Gigabit Ethernet |
| UART | 1 x USB-to-UART interface |
| Removable storage | 1 x MicroSD interface |
| EEPROM | 1 x 512-byte 24LC04 |
| Temperature monitoring | 1 x LM75A temperature sensor |
| LED indicators | 1 x power LED and 4 x user LEDs |
| Push buttons | 1 x reset key and 2 x user keys |
| Power input | 12 V single supply |
| Board dimensions | 210 x 106 mm |
| Board configuration | ACKU060 system-on-module with base board |
3) Tech Support/Dokuments
Web available technical information usually covers the AXKU062 product overview, board architecture, key features, applications, technical specifications, product selection matrix, related products, documentation, and package contents.
There are the following technical documents and resources:
- AXKU062 V2.0 User Manual.
- AXKU062 V3.0 User Manual.
- ACKU060 system-on-module information.
- Board-level information for DDR4 SDRAM, QSPI Flash, PCIe, SFP+, FMC HPC, FMC LPC, Gigabit Ethernet, UART, MicroSD, EEPROM, temperature monitoring, power, and board dimensions.
- Development demos and tutorials.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
Available related products mentioned for the AXKU062 include:
- ACKU060 FPGA SoM with AMD Kintex UltraScale XCKU060.
- AXKU042 FPGA Dev Board & Kit with AMD Kintex US XCKU040.
- AXKU040 FPGA Dev Board & Kit with AMD Kintex US XCKU040.
- AXKU041 FPGA Dev Board & Kit with AMD Kintex US XCKU040.
- AXKU15 FPGA Dev Board & Kit with AMD Kintex US+ XCKU15P.
- AXKU5 FPGA Dev Board & Kit with AMD Kintex US+ XCKU5P.
- AXKU3 FPGA Dev Board & Kit with AMD Kintex US+ XCKU3P.
- AXU15EGB Dev Board & Kit with AMD Zynq US+ MPSoC ZU15EG.
- FH9000 16-bit/14-bit RF-ADC AD9009 FMC HPC Card.
- FH7000 16-bit/14-bit ADC AD9371 Communication RF FMC HPC Card.
- FH7621 8K HDMI 2.1 Video Input/Output Interface HPC FMC Card.
- FH9712 16-channel GMSL Autopilot Camera Acquisition HPC FMC Card.
- FL9781 14-bit 500 MSPS AD9781 Output Module LPC FMC Card.
- FL9031 4-channel Gigabit Ethernet LPC FMC Card.
- FL2971 3G-SDI 1080P Video Input/Output LPC FMC Card.
- FL9627 4-channel 12-bit 125M LVDS AD9627 LPC FMC Card.
- FL2514 14-bit 250 MSPS AD Input Analog-to-Digital LPC FMC Card.
- FL9613 4-channel 12-bit 250M AD9613 Acquisition LPC FMC Card.
- FL6000 12-bit ADC AD9361 Communication RF FMC LPC Card.
5) Downloads/Links
- AXKU062 FPGA Dev Board & Kit with AMD Kintex US XCKU060
- Download — AXKU062 V2.0 User Manual
- Download — AXKU062 V3.0 User Manual
6) What is in the package
The package contains.
- 1 x System-on-module.
- 1 x Base board.
- 1 x Mini USB cable.
- 1 x USB downloader cable/set.
- 1 x 12 V power adapter.
- 1 x PCIe fence.
- 1 x Heatsink kit, preinstalled.
