Description and Technical Data:
1) Overview/Key Features

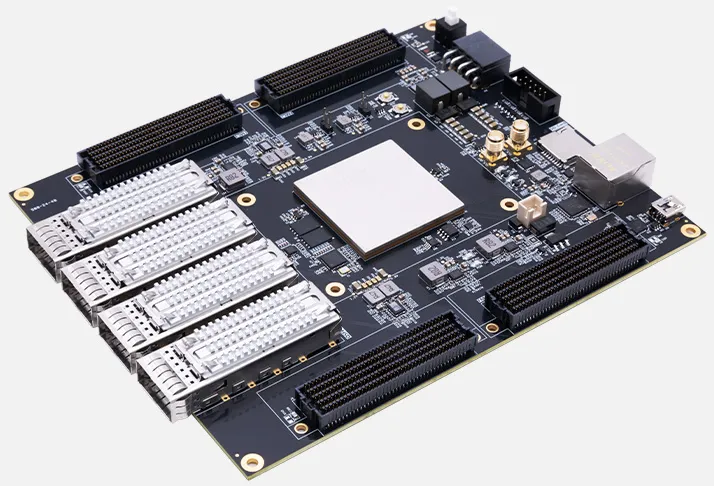

The AXKU115 is a professional FPGA development board based on the AMD Kintex UltraScale™ XCKU115 FPGA. It is designed for high-speed data processing, industrial control, hardware acceleration, communications, machine vision, medical imaging, storage acceleration, and data-center applications.
The board provides 4 FMC HPC expansion connectors, 4 x 40G QSFP+ optical interfaces, 64 GTH transceivers, Gigabit Ethernet, high-capacity QSPI Flash, and multiple control, debugging, and monitoring interfaces. Its FMC connectivity supports compatible high-speed data-acquisition, video, communication, and custom-I/O modules.
- AMD Kintex UltraScale™ XCKU115-2FLVA1517I FPGA
- 1,451K logic cells
- 5,520 DSP slices
- 64 GTH transceivers
- 2 x 64 MB QSPI Flash
- 4 x FMC HPC expansion connectors
- 4 x 40G QSFP+ optical interfaces
- 1 x Gigabit Ethernet interface
- 1 x USB-to-UART interface
- 1 x MicroSD card interface
- 2 x SMA connectors and 2 x JTAG interfaces
- 24LC04 EEPROM and LM75A temperature sensor
- 4 x LEDs and 2 x user keys
- 12 V single-supply operation
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | XCKU115-2FLVA1517I Kintex UltraScale™ FPGA |
| Logic cells | 1,451K |
| DSP slices | 5,520 |
| GTH transceivers | 64 |
| QSPI Flash | 2 x 64 MB, 128 MB total |
| FMC expansion | 4 x FMC HPC connectors |
| Optical interfaces | 4 x 40G QSFP+ interfaces |
| Ethernet | 1 x Gigabit Ethernet interface |
| Serial interface | 1 x USB-to-UART interface |
| Memory-card interface | 1 x MicroSD interface |
| Debug interfaces | 2 x JTAG interfaces |
| Clock and RF connectors | 2 x SMA connectors |
| EEPROM | 1 x 24LC04 I2C EEPROM |
| Temperature monitoring | 1 x LM75A temperature sensor |
| LED indicators | 4 x LEDs: 1 x power, 1 x done, and 2 x user LEDs |
| User controls | 2 x user keys |
| Power supply | 12 V single supply |
| Board dimensions | 177 x 143 mm |
3) Tech Support/Documents
Web available technical information usually covers the AXKU115 board architecture, Kintex UltraScale™ FPGA resources, high-speed GTH connectivity, FMC HPC expansion, QSFP+ optical interfaces, QSPI Flash, Ethernet, UART, MicroSD, JTAG, power requirements, and supported application areas. There are the following technical resources:
- AXKU115 product information
- Board feature information
- FPGA resource and interface specifications
- FMC expansion guidance
- High-speed optical-interface information
- Data-processing and hardware-acceleration application guidance
- Development demonstrations and tutorials
- Board documentation and development support resources
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- FH9000 16-bit/14-bit RF-ADC AD9009 FMC HPC Card
- FH7000 16-bit/14-bit ADC AD9371 Communication RF FMC HPC Card
- FL6000 12-bit ADC AD9361 Communication RF FMC LPC Card
- FL2514 14-bit 250 MSPS ADC Input Analog-to-Digital LPC FMC Card
- FH7622 8K HDMI 2.1 Video Input HPC FMC Card
- FH7621 8K HDMI 2.1 Video Input/Output HPC FMC Card
- FH1219 4 x 12G-SDI 4K@60 Video Input/Output HPC FMC Card
- FH1159 4K HDMI Video Input/Output Module HPC FMC Card
- FL9134 1080P HDMI Input/Output Module LPC FMC Card
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x AXKU115 FPGA development board
- 1 x USB downloader cable/set
- 1 x mini USB cable
- 1 x preinstalled heatsink kit
- 1 x 12 V power adapter
