Description and Technical Data:

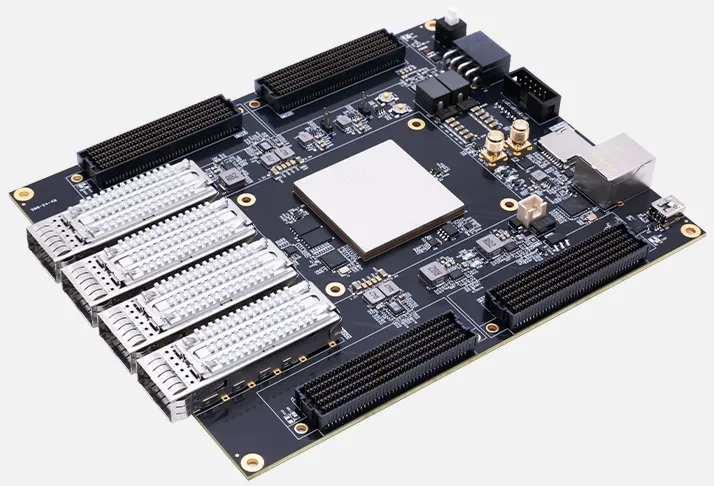

The AXKU115 is a professional-grade FPGA development platform featuring AMD/Xilinx Kintex UltraScale™ XCKU115, dual 512Mbit QSPI Flash, four 40G QSFP+ interfaces, four FMC HPC connectors, and Gigabit Ethernet, designed for high-speed data processing, industrial control, and scalable hardware acceleration.
Product Description
The AXKU115 FPGA development board, equipped with the AMD/Xilinx Kintex UltraScale™ XCKU115 device, delivers standout performance featuring dual 512Mbit QSPI Flash, four 40G QSFP+ optical interfaces, four FMC HPC expansion connectors, and Gigabit Ethernet. It supports a wide range of FMC modules, including high-speed data acquisition, video interfaces, and custom I/O applications.
Applications
Data Center
● Network Acceleration
● Storage Acceleration
Industrial, Science, Medical
● Medical Imaging Transmission
● Machine Vision
Wired Communications
● PON Access
● Optical Transport Network
Wireless Communications
● Wireless Radio
● Baseband
Key Features
- ● AMD/Xilinx Kintex Ultrascale™ :
◆ 1,451K Logic Cells
◆ 5,520 DSP Slices
◆ 64 x GTH Transceivers
● 2 x 64 MB QSPI Flash
● 4x FMC HPC
● 4 x 40G QSFP+
● 1 x Gigabit Ethernet
● 1 x USB-UART - ● 1 x MicroSD
● 2 x SMA
● 2 x JTAG
● 1 x EEPROM 24LC04
● 1 x Temperature sensor LM75A
● 4 x LED (1 x PWR + 1 x DONE + 2 x User)
● 2 x KEY
● 12V single supply
● Dimensions: 177 x 143 mm form factor
Board Features
Featuring the AMD/Xilinx Kintex Ultrascale™ XCKU115-2FLVA1517I
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale™ based application.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX AMD Xilinx Kintex Ultrascale™ XCKU115 FPGA development board and Some accessories
| development board | 1 | USB Downloader Cable / set | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | Heatsink Kit (preinstalled) | 1 |
| 12V Power Adapter | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | QSPI Flash | GTH | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXKU115 | √ | XCKU115-2FLVA1517I | 128 MB | 64 | 5242 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
