Description and Technical Data:
1) Overview/Key Features

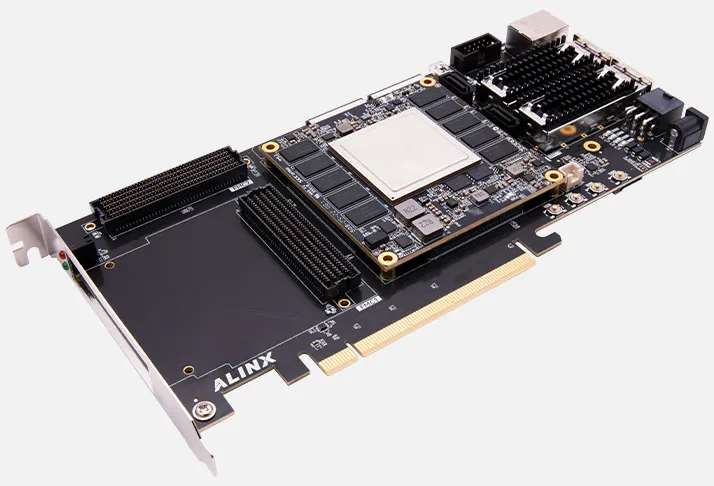

The AXKU15 is an FPGA development board and evaluation kit based on the AMD Kintex UltraScale+ XCKU15P FPGA. The platform combines a removable system-on-module with a feature-rich base board for high-performance development in data-center acceleration, industrial and medical imaging, wired and wireless communications, storage acceleration, machine vision, radio, and baseband applications. It supports high-speed connectivity through PCIe Gen3, QSFP28, FMC HPC, Gigabit Ethernet, SATA, and MIPI interfaces.
- AMD Kintex UltraScale+ XCKU15P FPGA with 16 nm FinFET technology.
- 10 GB of 80-bit DDR4 SDRAM.
- 2 x 64 MB QSPI Flash devices.
- 2 x FMC HPC connectors with high-speed GTH and LVDS interfaces.
- 1 x PCIe Gen3 x16 interface.
- 2 x QSFP28 interfaces supporting up to 100 Gbps.
- 1 x Gigabit Ethernet interface.
- 2 x 4-lane MIPI interfaces.
- 2 x SATA interfaces.
- 1 x MicroSD card interface.
- USB-to-UART interface, EEPROM, temperature sensor, LEDs, and user keys.
- 12 V single-supply operation.
- 226 x 111 mm board form factor.
- Compatible with a range of FMC expansion cards for data acquisition, motor control, display, camera interfaces, and software-defined radio.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | XCKU15P-2FFVE1517I |
| FPGA family | Kintex UltraScale+ |
| FPGA process technology | 16 nm FinFET |
| DDR4 SDRAM | 10 GB, 80-bit interface |
| QSPI Flash | 2 x 64 MB |
| GTH transceivers | 32 |
| GTY transceivers | 24 |
| FMC connectors | 2 x FMC HPC |
| FMC1 connectivity | 58 pairs LVDS I/O and 8 pairs GTH |
| FMC2 connectivity | 34 pairs LVDS I/O and 8 pairs GTH |
| PCI Express | 1 x PCIe Gen3 x16 |
| QSFP28 | 2 x interfaces, up to 100 Gbps |
| Ethernet | 1 x Gigabit Ethernet |
| MIPI | 2 x 4-lane interfaces |
| SATA | 2 x interfaces |
| UART | 1 x USB-to-UART interface |
| Storage interface | 1 x MicroSD |
| EEPROM | 1 x 512-byte 24LC04 |
| Temperature sensor | 1 x LM75 |
| User indicators | 1 x power LED, 1 x RXD LED, 1 x TXD LED, and 4 x user LEDs |
| User controls | 4 x push buttons |
| Power input | 12 V single supply |
| Dimensions | 226 x 111 mm |
3) Tech Support/Documents
Web available technical information usually covers the AXKU15 V2.0 user manual, AXKU15 V1.0 user manual, product descriptions, interface information, board features, applications, product-selection information, and development demonstrations or tutorials. There are the following technical resources available through the product documentation area:
- AXKU15 V2.0 User Manual
- AXKU15 V1.0 User Manual
- Board feature and interface information
- Product selection and configuration information
- Development demonstrations and tutorials
Contact Mirifica Industrial for further detailed information for your project.
