Description and Technical Data:
1) Overview/Key Features

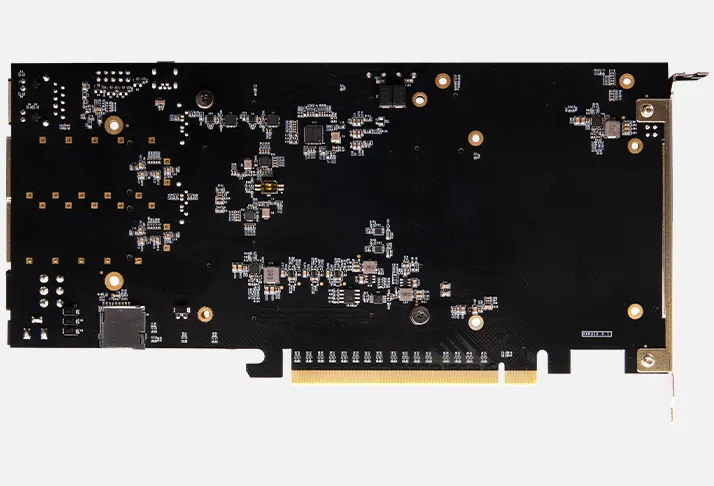

The ALINX AXKU15 is a high-performance FPGA development and evaluation platform based on the Kintex UltraScale+ XCKU15P FPGA. The platform consists of a pluggable ACKU15 system-on-module and a feature-rich carrier board, providing high-speed memory, PCIe Gen3, QSFP28 networking, FMC expansion, MIPI interfaces, SATA, Gigabit Ethernet, and multiple control and debug interfaces.
- Kintex UltraScale+ XCKU15P FPGA with 16 nm FinFET programmable logic
- Pluggable module design using 4 x Samtec board-to-board connectors
- 10 GB 80-bit DDR4 SDRAM
- 2 x 64 MB QSPI Flash
- 1 x PCIe Gen3 x16 interface
- 2 x QSFP28 interfaces supporting up to 100 Gbps each
- 2 x FMC HPC expansion interfaces
- 1 x Gigabit Ethernet interface
- 2 x 4-lane MIPI interfaces
- 2 x SATA interfaces
- 1 x USB-to-UART interface
- 1 x MicroSD card interface
- 512-byte EEPROM and LM75 temperature sensor
- Power, communication, and user-status LEDs
- 4 x user push buttons
- 12 V single-supply operation
- 226 x 111 mm board form factor
- Suitable for data-center acceleration, network and storage acceleration, medical imaging, machine vision, wired communications, optical transport, wireless communications, radio, and baseband processing
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | Kintex UltraScale+ XCKU15P-2FFVE1517I |
| FPGA process technology | 16 nm FinFET |
| System-on-module construction | Pluggable module with 4 x Samtec board-to-board connectors |
| DDR4 SDRAM | 10 GB, 80-bit |
| QSPI Flash | 2 x 64 MB |
| PCI Express | 1 x PCIe Gen3 x16 |
| QSFP28 | 2 x QSFP28, up to 100 Gbps each |
| FMC expansion | 2 x FMC HPC; FMC1 provides 58 LVDS pairs and 8 GTH pairs, while FMC2 provides 34 LVDS pairs and 8 GTH pairs |
| Gigabit Ethernet | 1 x Gigabit Ethernet interface |
| MIPI | 2 x 4-lane MIPI interfaces |
| SATA | 2 x SATA interfaces |
| UART | 1 x USB-to-UART interface |
| Storage | 1 x MicroSD card interface |
| EEPROM | 1 x 512-byte 24LC04 EEPROM |
| Temperature monitoring | 1 x LM75 temperature sensor |
| Indicators | 1 x power LED, 1 x RXD LED, 1 x TXD LED, and 4 x user LEDs |
| User controls | 4 x user push buttons |
| Power input | 12 V DC single supply |
| Board dimensions | 226 x 111 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the AXKU15 system-on-module and carrier-board architecture, the XCKU15P FPGA, DDR4 and QSPI memory, PCIe Gen3, QSFP28 networking, FMC HPC expansion, Gigabit Ethernet, MIPI, SATA, UART, MicroSD, EEPROM, temperature monitoring, power requirements, and supported FPGA development applications.
There are the following technical resources available:
- AXKU15 V2.0 User Manual
- AXKU15 V1.0 User Manual
- AXKU15 product information
- Product Selection Matrix
- Hardware interface and connector information
- Development demos and tutorials
- Application information for networking, storage, communications, machine vision, and medical imaging
Contact Mirifica Industrial for further detailed information for your project.
