Description and Technical Data:
1) Overview/Key Features

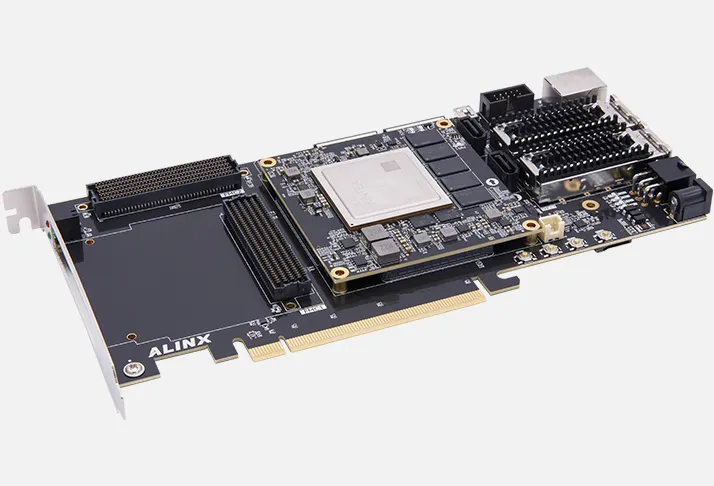

The ALINX AXKU15S is an FPGA development board and evaluation kit built around the AMD/Xilinx Kintex UltraScale+™ XCKU15P-2FFVE1517I. It combines a pluggable FPGA system-on-module with a feature-rich base board for high-performance data processing, networking, storage acceleration, communications, industrial systems, medical imaging, machine vision, and software-defined radio applications.
Key features include:
- AMD/Xilinx Kintex UltraScale+™ FPGA fabric using 16 nm FinFET technology
- XCKU15P-2FFVE1517I device
- Pluggable system-on-module with four Samtec board-to-board connectors
- 5 GB, 80-bit DDR4 SDRAM
- 2 × 64 MB QSPI Flash
- Two FMC HPC interfaces
- PCIe® Gen3 ×16 interface
- Two QSFP28 interfaces supporting up to 100 Gbps
- Gigabit Ethernet
- Two 4-lane MIPI interfaces
- USB-to-UART interface
- MicroSD interface
- 12 V single-supply operation
- 226 × 111 mm board form factor
- Compatible with a range of FMC data-acquisition, motor-control, display, camera, and software-defined-radio cards
- Suitable for data-center, network-acceleration, storage-acceleration, wired-communication, wireless-communication, and medical applications.
B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | AMD/Xilinx Kintex UltraScale+™ XCKU15P-2FFVE1517I |
| FPGA process technology | 16 nm FinFET |
| System-on-module memory | 5 GB DDR4 SDRAM |
| DDR4 interface | 80-bit |
| QSPI Flash | 2 × 64 MB |
| High-speed transceivers | 32 GTH; 24 GTY |
| FMC interfaces | 2 × FMC HPC |
| FMC1 I/O | 58 LVDS pairs plus 8 GTH pairs |
| FMC2 I/O | 34 LVDS pairs plus 8 GTH pairs |
| PCIe | 1 × PCIe Gen3 ×16 |
| QSFP28 | 2 interfaces; up to 100 Gbps |
| Ethernet | 1 × Gigabit Ethernet |
| UART | 1 × USB-to-UART |
| MIPI | 2 × 4-lane MIPI interfaces |
| Removable storage | 1 × MicroSD |
| EEPROM | 1 × 512-byte 24LC04 EEPROM |
| Temperature monitoring | 1 × LM75 temperature sensor |
| User indicators | 1 × power LED, 1 × RXD LED, 1 × TXD LED, 4 × user LEDs |
| User controls | 4 × keys |
| Power input | 12 V single supply |
| Board dimensions | 226 × 111 mm |
| Board configuration | ACKU15S system-on-module plus base board |
| Product version | AXKU15S V1.0 |
3) Tech Support/Dokuments
Web available technical information usually covers product features, interface capabilities, FPGA and memory configuration, board dimensions, supported applications, product-selection information, documentation availability, and included accessories. Documentation, demos, and tutorials are available for the product.
4) Related Product Suggestion
Available manufacturer-listed add-on and related products include:
- FH9000 16bit/14bit RF-ADC AD9009 FMC HPC Card
- FH7000 16bit/14bit ADC AD9371 Communication RF FMC HPC Card
- FH7621 8K HDMI2.1 Video Input/Output Interface HPC FMC Card
- FH9712 16-channel GMSL Autopilot Camera Acquisition HPC FMC Card
- FL9781 14-bit 500MSPS AD9781 Output Module LPC FMC Card
- FL9031 4-channel Gigabit Ethernet LPC FMC Card
- FL2971 3G-SDI 1080P Video Input/Output LPC FMC Card
- FL9627 4-channel 12-bit 125M LVDS AD9627 LPC FMC Card
- FL2514 14-bit 250MSPS AD Input Analog-to-Digital LPC FMC Card
- FL9613 4-channel 12-bit 250M AD9613 Acquisition LPC FMC Card
- FL6000 12-bit ADC AD9361 Communication RF FMC LPC Card
Related system products also include the ACKU15S FPGA SoM, AXKU15-D, ACKU15-D, ACKU15, AXKU5, AXKU3, AXKU062, AXKU042, AXKU040, and AXU15EGB development boards or modules.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 × System-on-Module
- 1 × Base Board
- 1 × Mini USB Cable
- 1 × USB Downloader Cable / set
- 1 × 12 V Power Adapter
- 1 × PCIe Fence
- 1 × Heatsink Kit, preinstalled
